MAX5388NAUB+ - Analog Devices

Description: Dual, 256-Tap, Volatile Low-Voltage Linear Taper Digital Potentiometers

Download MAX5388NAUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

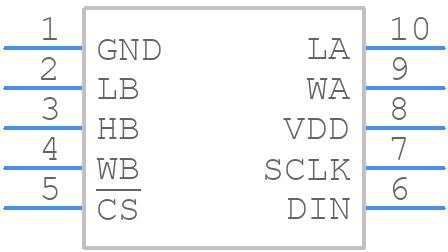

MAX5388NAUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5388NAUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2
click to zoom
3D Models
MAX5388NAUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2
click to zoom

MAX5388NAUB+ Details

  • Manufacturer Part Number:

    MAX5388NAUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    3 X 5 MM, ROHS COMPLIANT, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-05-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    0.075 kHz

  • Control Interface:

    SERIAL PERIPHERAL INTERFACE

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Resistor Terminal Voltage-Max:

    5.3 V

  • Resistor Terminal Voltage-Min:

    -0.03 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

MAX5388NAUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5388NAUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure the MAX5388NAUB+ is stable and does not oscillate, it is essential to follow the recommended layout and placement guidelines, use a sufficient output capacitor (at least 10uF), and ensure the input voltage is within the recommended range. Additionally, the device should be decoupled from the power source using a 10uF capacitor, and the output should be decoupled from the load using a 10uF capacitor.
  • The maximum input voltage that the MAX5388NAUB+ can handle is 5.5V. Exceeding this voltage may damage the device. It is essential to ensure the input voltage is within the recommended range of 2.7V to 5.5V to ensure reliable operation.
  • The MAX5388NAUB+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is essential to ensure the device is operated within the recommended temperature range of -40°C to 125°C to ensure reliable operation.
  • To troubleshoot issues with the MAX5388NAUB+, start by verifying the input voltage and output voltage using an oscilloscope or multimeter. Check for any signs of overheating, such as excessive temperature or burning smell. Ensure the device is properly decoupled from the power source and load, and that the output capacitor is sufficient. If the issue persists, consult the datasheet and application notes for further guidance.
