MAX5394LATA+T - Analog Devices

Description: 1.7V ~ 5.5V Digital Potentiometer 10k Ohm 1 Circuit 256 Taps SPI Interface 8-TDFN-EP (2x2)

Download MAX5394LATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

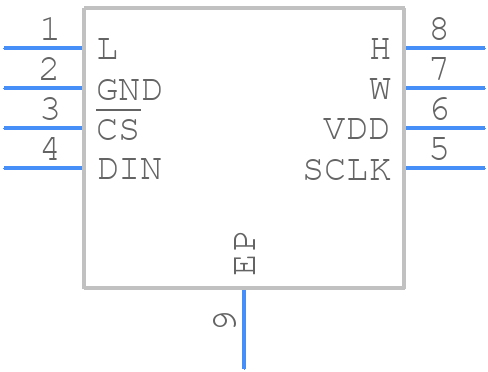

MAX5394LATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5394LATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+2
click to zoom
3D Models
MAX5394LATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+2
click to zoom

MAX5394LATA+T Details

  • Manufacturer Part Number:

    MAX5394LATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    SON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-07-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    1.6 kHz

  • Control Interface:

    SERIAL PERIPHERAL INTERFACE

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -0.3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    10000 Ω

  • Width:

    2 mm

MAX5394LATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5394LATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • The MAX5394LATA+T requires a single 3.3V or 5V power supply. It's recommended to power the device with a low-noise, low-dropout regulator. The power sequencing requirements are not critical, but it's recommended to power the device after the input signals are stable to prevent any unwanted output voltage transients.
  • The MAX5394LATA+T can drive a maximum capacitive load of 100nF. Exceeding this limit may cause the device to oscillate or become unstable. If a larger capacitive load is required, an external buffer or amplifier may be necessary.
  • The output voltage of the MAX5394LATA+T can be adjusted by using an external resistor divider network connected to the VOUT pin. The output voltage can be set to any value between 0V and the input voltage by selecting the appropriate resistor values.
  • The thermal shutdown temperature of the MAX5394LATA+T is typically around 150°C. If the device junction temperature exceeds this limit, it will shut down to prevent damage. The device will automatically restart once the temperature drops below 120°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5394LATA+T Overview

Use the download button to access the MAX5394LATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
