MAX5394MATA+T - Analog Devices

Description: 1.7V ~ 5.5V Digital Potentiometer 10k Ohm 1 Circuit 256 Taps SPI Interface 8-TDFN-EP (2x2)

Download MAX5394MATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

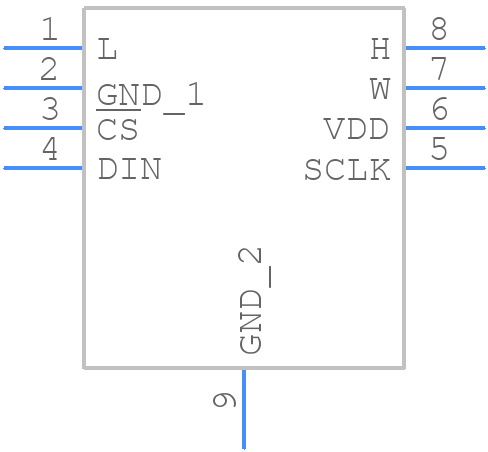

MAX5394MATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5394MATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+2
click to zoom
3D Models
MAX5394MATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+2
click to zoom

MAX5394MATA+T Details

  • Manufacturer Part Number:

    MAX5394MATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    SON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-07-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    0.34 kHz

  • Control Interface:

    SERIAL PERIPHERAL INTERFACE

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -0.3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    2 mm

MAX5394MATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5394MATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence in the datasheet. This typically involves applying the power supply voltage to the device before applying any input signals. Additionally, ensure that the device is properly configured and initialized through the SPI interface before using it in the application.
  • The MAX5394MATA+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX5394MATA+T, start by verifying the power supply voltage and ensuring that it's within the recommended range. Next, check the device's configuration and initialization through the SPI interface. Use a logic analyzer or oscilloscope to verify the communication signals and ensure that they're correct. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The MAX5394MATA+T is a high-reliability device that's suitable for use in safety-critical applications. However, it's essential to follow the recommended design and layout guidelines, as well as to implement proper fault detection and correction mechanisms to ensure the device operates correctly in the event of a failure.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5394MATA+T Overview

Use the download button to access the MAX5394MATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX53, or try a keyword search, such as Digital Potentiometers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
