MAX5395MATA+T - Analog Devices

Description: Digital Potentiometer ICs Single, 256-Tap Volatile, IC, Low-Voltage Linear Taper Digital Potentiometer

Download MAX5395MATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

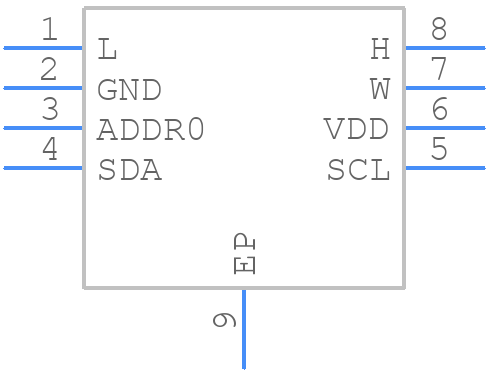

MAX5395MATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5395MATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 TDFN-EP HEIGHT 0.8
click to zoom
3D Models
MAX5395MATA+T - Analog Devices - 3D model - Small Outline No-lead - 8 TDFN-EP HEIGHT 0.8
click to zoom

MAX5395MATA+T Details

  • Manufacturer Part Number:

    MAX5395MATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    SON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Bandwidth-Nom:

    0.34 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Resistance Law:

    LINEAR

  • Resistance Tolerance-Max:

    25%

  • Resistor Terminal Voltage-Max:

    5.5 V

  • Resistor Terminal Voltage-Min:

    -0.3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    50 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    2 mm

MAX5395MATA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5395MATA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and load current, and the device should be operated within its recommended operating conditions.
  • The maximum output current capability of the MAX5395MATA+T is 500mA. However, the device can deliver higher currents for short durations, but this may affect its reliability and lifespan. It's recommended to operate the device within its recommended operating conditions to ensure optimal performance and reliability.
  • The output voltage of the MAX5395MATA+T can be programmed using an external resistor divider network connected to the FB pin. The resistor values can be calculated using the formula provided in the datasheet, and the output voltage can be set to any value between 0.8V and 5.5V.
  • The EN pin is an active-high enable input that allows the device to be turned on or off. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
