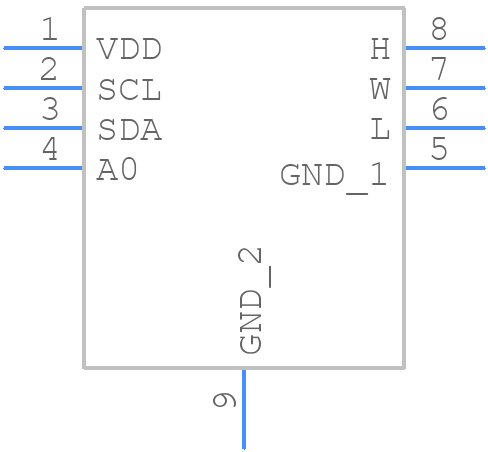

MAX5417META+ - Analog Devices

MAX5417META+ Details

• Manufacturer Part Number:

  MAX5417META+

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-LFCSP-3X3X0.75

• Pin Count:

  8

• Manufacturer Package Code:

  8-LFCSP-3X3X0.75

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2004-02-18

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  NON VOLATILE MEMORY

• Bandwidth-Nom:

  0.1 kHz

• Control Interface:

  2-WIRE SERIAL

• Converter Type:

  DIGITAL POTENTIOMETER

• JESD-30 Code:

  S-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Positions:

  256

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Resistance Law:

  LINEAR

• Resistor Terminal Voltage-Max:

  5 V

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Coefficient-Nom:

  35 ppm/°C

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Resistance-Nom:

  50000 Ω

• Width:

  3 mm
