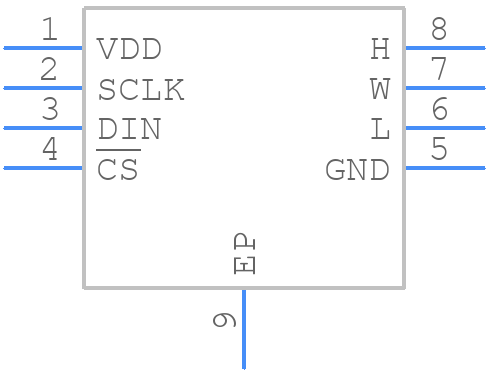

MAX5423ETA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5423ETA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - tdfn_8
click to zoom
3D Models
MAX5423ETA+T - Analog Devices - 3D model - Small Outline No-lead - tdfn_8
click to zoom

MAX5423ETA+T Details

  • Manufacturer Part Number:

    MAX5423ETA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-3X3X0.75

  • Package Description:

    HVSON, SOLCC8,.12,25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-3X3X0.75

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-08-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Resistor Terminal Voltage-Max:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    3 mm

MAX5423ETA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5423ETA+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure proper powering and decoupling of the MAX5423ETA+T, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The MAX5423ETA+T has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX5423ETA+T, start by verifying the power supply and decoupling. Check the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Ensure the device is properly configured and the feedback loop is stable. If issues persist, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.
  • The MAX5423ETA+T is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure the device meets the required safety and reliability standards. Consult the datasheet and relevant industry standards (e.g., IEC 61508, ISO 26262) to ensure the device is used in a way that meets the application's safety and reliability requirements.
