MAX5442AEUB+ - Analog Devices

Description: Maxim MAX5442AEUB+, 16 bit Serial DAC, 10-Pin μMAX

Download MAX5442AEUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

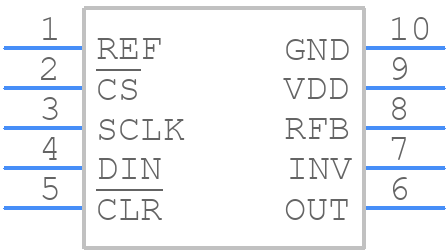

MAX5442AEUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5442AEUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_20201
click to zoom
3D Models
MAX5442AEUB+ - Analog Devices - 3D model - Small Outline Packages - U10+2_20201
click to zoom

MAX5442AEUB+ Details

  • Manufacturer Part Number:

    MAX5442AEUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICRO MAX PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2000-10-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    2.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    1 µs

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5442AEUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5442AEUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure proper power-up and power-down of the MAX5442AEUB+, it is recommended to follow a controlled power-up sequence, where the input voltage (VIN) is applied before the enable pin (EN) is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed. This helps prevent unwanted current consumption and ensures proper device operation.
  • The MAX5442AEUB+ can drive capacitive loads up to 10nF. However, it is recommended to limit the capacitive load to 1nF or less to ensure stable operation and prevent oscillations. If a larger capacitive load is required, an external resistor can be added in series with the output to dampen the output and prevent oscillations.
  • To troubleshoot issues with the MAX5442AEUB+, start by verifying the power supply voltage and ensuring it is within the recommended operating range. Check the enable pin (EN) to ensure it is properly asserted or de-asserted. Use an oscilloscope to monitor the output voltage and check for any signs of oscillation or instability. If issues persist, consult the datasheet and application notes for further guidance.
  • The MAX5442AEUB+ is rated for operation up to 125°C. However, it is recommended to derate the device's performance and consider the thermal constraints of the application. Ensure proper heat sinking and thermal management to prevent overheating and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5442AEUB+ Overview

Use the download button to access the MAX5442AEUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
