MAX5479EUD+ - Analog Devices

Description: Dual, 256-Tap, Nonvolatile, I?C-Interface, Digital Potentiometers

Download MAX5479EUD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

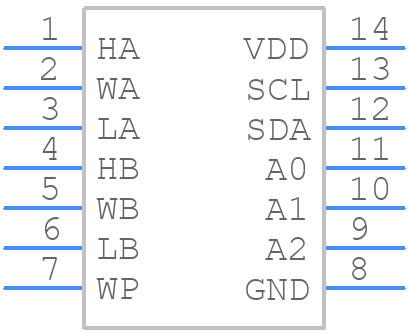

Symbol
MAX5479EUD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5479EUD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U14+1
click to zoom
3D Models
MAX5479EUD+ - Analog Devices - 3D model - Small Outline Packages - U14+1
click to zoom

MAX5479EUD+ Details

  • Manufacturer Part Number:

    MAX5479EUD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    NONVOLATILE MEMORY; OTHER RESISTOR ARRAY IS: 100000 OHMS WITH 256 TAP POSITIONS

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    2-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Positions:

    256

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    70 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    100000 Ω

  • Width:

    4.4 mm

MAX5479EUD+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5479EUD+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX5479EUD+ is stable and doesn't oscillate, it's essential to follow the recommended layout and placement guidelines, use the correct output capacitor value and type, and ensure the input voltage is within the recommended range. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the output and ground to improve stability.
  • The maximum input voltage that the MAX5479EUD+ can handle is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX5479EUD+ is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. It's recommended to use a heat sink or a thermal pad to ensure the device remains within its recommended operating temperature range.
  • To troubleshoot issues with the MAX5479EUD+, start by verifying the input voltage and current, checking the output voltage and current, and ensuring the device is properly soldered and connected. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance on troubleshooting common issues.
