MAX5495ETE+ - Analog Devices

Description: MAX5495ETE+, Digital Potentiometer 50kΩ 1024-Position Linear 2-channel Serial-3 Wire, Serial-SPI 16-Pin TQFN

Download MAX5495ETE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

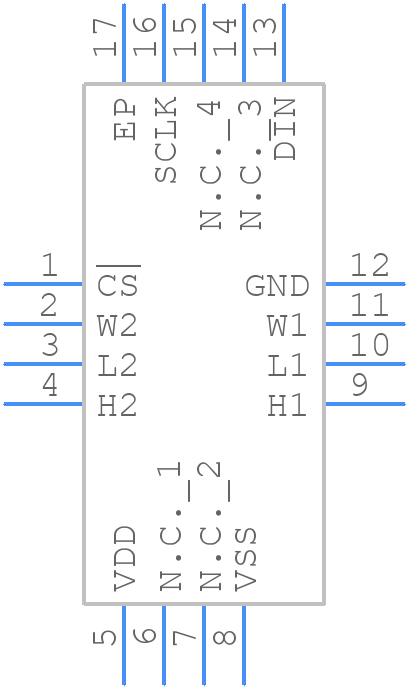

Symbol
MAX5495ETE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5495ETE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX5495ETE+a
click to zoom
3D Models
MAX5495ETE+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX5495ETE+a
click to zoom

MAX5495ETE+ Details

  • Manufacturer Part Number:

    MAX5495ETE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, 0.80 MM HEIGHT, EXPOSED PAD, MO-220WHHB, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2005-02-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    NV; OTHER RESISTOR VALUE IS 50000 OHMS W/1024 TAP POSTIONS; ALSO OPERATE W/2.5V DUAL SUPPLY

  • Bandwidth-Nom:

    0.05 kHz

  • Control Interface:

    3-WIRE SERIAL

  • Converter Type:

    DIGITAL POTENTIOMETER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Positions:

    1024

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.2SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Resistance Law:

    LINEAR

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Coefficient-Nom:

    35 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Resistance-Nom:

    50000 Ω

  • Width:

    5 mm

MAX5495ETE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5495ETE+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is also recommended.
  • To ensure stability, make sure to follow the recommended layout and placement, use a sufficient output capacitor (at least 10uF), and keep the input and output traces short and direct. Additionally, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
  • The maximum input voltage that can be applied to the MAX5495ETE+ is 6V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage limiter or regulator to ensure the input voltage remains within the specified range.
  • The MAX5495ETE+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX5495ETE+, start by verifying the input voltage and current, checking for proper layout and placement, and ensuring that the device is operated within its recommended operating conditions. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5495ETE+ Overview

Use the download button to access the MAX5495ETE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54, or try a keyword search, such as Digital Potentiometers
