MAX549ACPA+ - Analog Devices

Description: Digital to Analog Converters - DAC 8-Bit 2Ch Precision DAC

Download MAX549ACPA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

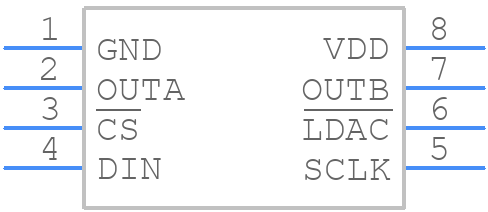

Symbol
MAX549ACPA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX549ACPA+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8 leads pdip
click to zoom
3D Models
MAX549ACPA+ - Analog Devices - 3D model - Dual-In-Line Packages - 8 leads pdip
click to zoom

MAX549ACPA+ Details

  • Manufacturer Part Number:

    MAX549ACPA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-PDIP-300_MIL

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.375 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX549ACPA+ Frequently Asked Questions (FAQs)

  • To ensure optimal performance, it's recommended to follow a star-grounding configuration, keep the input and output traces separate, and use a solid ground plane. Additionally, place the device close to the power supply and use a low-ESR capacitor for decoupling.
  • The MAX549ACPA+ has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • Although the datasheet specifies a minimum input voltage of 4.5V, it's recommended to operate the device with a minimum input voltage of 5V to ensure stable output and optimal performance.
  • The output voltage of the MAX549ACPA+ can be adjusted by connecting a resistor divider network between the output pin and the adjust pin. The ratio of the resistors determines the output voltage. Refer to the datasheet for the calculation formula and example circuits.
  • The MAX549ACPA+ can deliver up to 1.5A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and ambient temperature. Ensure that the device is operated within the recommended operating conditions to avoid overheating and damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX549ACPA+ Overview

Use the download button to access the MAX549ACPA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX54, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
