- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX5501BGAP+
- Part Number MAX5501BGAP+
- Manufacturer Analog Devices
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - A20+2
- Released Date Jan 11, 2017
- Last Modified Date May 12, 2025 10:37 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAX5501BGAP+ Details
-
Manufacturer Part Number:
MAX5501BGAP+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
20-SSOP-5.3_MM
-
Package Description:
ROHS COMPLIANT, SSOP-20
-
Pin Count:
20
-
Manufacturer Package Code:
20-SSOP-5.3_MM
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.40
-
Date Of Intro:
2008-11-13
-
Manufacturer:
Analog Devices Inc
MAX5501BGAP+ Frequently Asked Questions (FAQs)
-
The recommended layout and placement for the MAX5501BGAP+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
-
To ensure the MAX5501BGAP+ operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. The device should be mounted on a PCB with a thermal pad connected to a heat sink or a metal plate. Additionally, the ambient temperature should be kept within the specified range of -40°C to +125°C.
-
The recommended input voltage range for the MAX5501BGAP+ is 2.7V to 5.5V. Operating the device outside of this range may affect its performance, accuracy, and reliability. It's essential to ensure the input voltage is within the specified range to guarantee optimal performance.
-
To handle ESD protection for the MAX5501BGAP+, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines. Additionally, handling the device by its package and not its pins, using an anti-static wrist strap, and storing the device in an anti-static bag can help prevent ESD damage.
-
The recommended output capacitor value for the MAX5501BGAP+ is 1µF to 10µF, depending on the specific application requirements. A larger output capacitor can help improve the device's stability and transient response, but may also increase the startup time.
Trust Checks
System Verified
MAX5501BGAP+ Overview

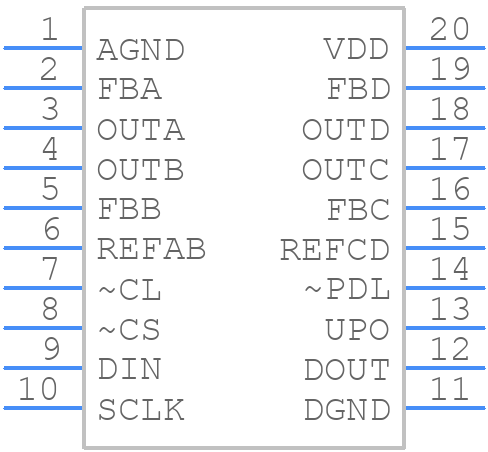

Use the download button to access the MAX5501BGAP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX55,
or try a keyword search, such as Digital to Analog Converters
