MAX550ACUA+T - Analog Devices

Description: Digital to Analog Converters - DAC +2.5V to +5.5V, Low-Power, Single/Dual, 8-Bit Voltage-Output DACs in uMAX Package

Download MAX550ACUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

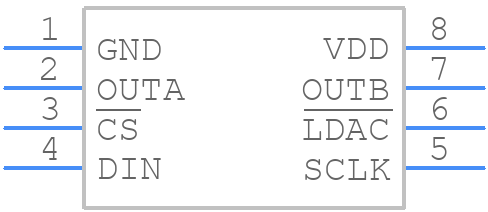

Symbol
MAX550ACUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX550ACUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 pin umax-
click to zoom
3D Models
MAX550ACUA+T - Analog Devices - 3D model - Small Outline Packages - 8 pin umax-
click to zoom

MAX550ACUA+T Details

  • Manufacturer Part Number:

    MAX550ACUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP8,.19

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.01 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX550ACUA+T Frequently Asked Questions (FAQs)

  • The MAX550ACUA+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX550ACUA+T requires a single 2.7V to 5.5V power supply. It is recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The power sequencing requirements are critical, and it is recommended to power up the device in the following order: VCC, then VIN. The power-down sequence should be reversed. It is also recommended to add a 10uF capacitor between VCC and GND to filter out noise and ensure stable operation.
  • The MAX550ACUA+T has an operating temperature range of -40°C to +125°C. The device's performance may be affected by temperature, with increased temperature resulting in increased power consumption and decreased accuracy. It is recommended to operate the device within the specified temperature range and to ensure proper thermal management to prevent overheating.
  • To troubleshoot common issues with the MAX550ACUA+T, it is recommended to follow a systematic approach. First, verify that the device is properly powered and that the input and output voltages are within the specified range. Check for oscillations by monitoring the output voltage with an oscilloscope. If oscillations are present, check the layout and placement of the device and ensure that the input and output traces are properly routed. If the output voltage is inaccurate, check the input voltage and the feedback resistors to ensure that they are properly configured.
  • The MAX550ACUA+T has built-in ESD protection and latch-up prevention measures. The device has a human-body model (HBM) ESD rating of 2kV and a machine-model (MM) ESD rating of 200V. Additionally, the device has built-in latch-up protection to prevent damage from overvoltage conditions. However, it is still recommended to follow proper handling and storage procedures to prevent ESD damage, and to use ESD protection devices such as TVS diodes or ESD protection arrays in the system design.
