MAX550AEUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX550AEUA+ - Digital to Analogue Converter, Low Power, 8 bit, SPI, 2.5V to 5.5V, µMAX, 8 Pins

Download MAX550AEUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

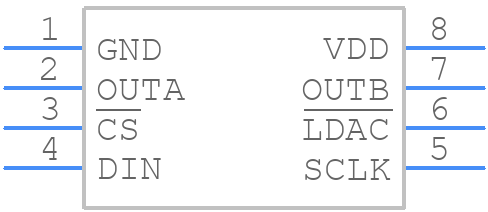

Symbol
MAX550AEUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX550AEUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - UMAX/8
click to zoom
3D Models
MAX550AEUA+ - Analog Devices - 3D model - Small Outline Packages - UMAX/8
click to zoom

MAX550AEUA+ Details

  • Manufacturer Part Number:

    MAX550AEUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    ROHS COMPLIANT, UMAX-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX550AEUA+ Frequently Asked Questions (FAQs)

  • It is recommended to place the MAX550AEUA+ close to the power source, use a solid ground plane, and keep the input and output traces short and separate to minimize noise. Additionally, it is recommended to use a 0.1uF bypass capacitor between the VCC and GND pins to filter out high-frequency noise.
  • The MAX550AEUA+ is specified to operate from -40°C to +125°C. To ensure operation within this range, it is recommended to provide adequate heat sinking, avoid exposing the device to extreme temperatures, and use thermal management techniques such as thermal pads or heat sinks if necessary.
  • The maximum current that can be drawn from the MAX550AEUA+ output is 5mA. Exceeding this current may cause the device to overheat or malfunction. It is recommended to use an external buffer or amplifier if higher currents are required.
  • Common causes of low output voltage include incorrect input voltage, insufficient power supply decoupling, or excessive output current. Check the input voltage, ensure proper power supply decoupling, and verify that the output current is within the specified range. Also, check for any shorts or leakage on the output pins.
  • Yes, the MAX550AEUA+ can be used in switching power supply applications. However, it is recommended to use a suitable output capacitor to filter out high-frequency noise and ensure stable output voltage. Additionally, ensure that the input voltage is within the specified range and that the device is properly decoupled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX550AEUA+ Overview

Use the download button to access the MAX550AEUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX55, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
