MAX550AEUA+T - Analog Devices

Description: Digital to Analog Converters - DAC +2.5V to +5.5V, Low-Power, Single/Dual, 8-Bit Voltage-Output DACs in MAX Package

Download MAX550AEUA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

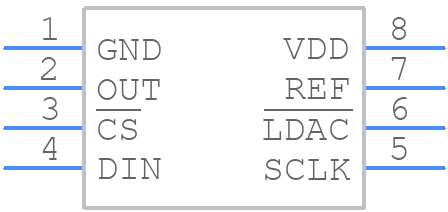

MAX550AEUA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX550AEUA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8LD uMAX-1
click to zoom
3D Models
MAX550AEUA+T - Analog Devices - 3D model - Small Outline Packages - 8LD uMAX-1
click to zoom

MAX550AEUA+T Details

  • Manufacturer Part Number:

    MAX550AEUA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    TSSOP,

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    1997-03-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.39%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX550AEUA+T Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keep the device away from high-current carrying traces, and use a solid ground plane to minimize noise. Additionally, place the device close to the power source and use short, direct traces to reduce parasitic inductance.
  • The MAX550AEUA+T requires a single 2.7V to 5.5V power supply. Ensure that the power supply is stable and well-regulated. Power sequencing is not critical, but it is recommended to power the device after the input signals are stable to prevent unwanted output states.
  • The MAX550AEUA+T can drive up to 100pF of capacitive load. As the capacitive load increases, the output rise and fall times will increase, which may affect the overall system performance. It is recommended to keep the capacitive load as low as possible to maintain fast output switching times.
  • The MAX550AEUA+T has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments. Follow the recommended thermal design guidelines to prevent thermal shutdown or damage.
  • The MAX550AEUA+T has built-in ESD protection diodes on the input and output pins. However, it is still recommended to follow proper ESD handling and storage procedures to prevent damage. Additionally, the device is designed to prevent latch-up, but it is still important to follow proper power sequencing and input signal handling to prevent unwanted latch-up conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX550AEUA+T Overview

Use the download button to access the MAX550AEUA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX55, or try a keyword search, such as Digital to Analog Converters
