MAX5523EUA+ - Analog Devices

Description: Maxim MAX5523EUA+, 2-channel 10 bit Serial DAC, 8-Pin μMAX U8CN+1

Download MAX5523EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

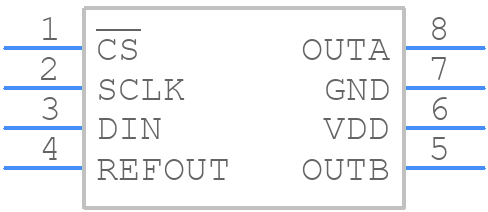

MAX5523EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5523EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8CN+1
click to zoom
3D Models
MAX5523EUA+ - Analog Devices - 3D model - Small Outline Packages - U8CN+1
click to zoom

MAX5523EUA+ Details

  • Manufacturer Part Number:

    MAX5523EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, MO-187C-AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2004-01-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    12 µs

  • Supply Current-Max:

    0.008 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5523EUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5523EUA+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize the length of the power traces.
  • To ensure the stability of the MAX5523EUA+, it is essential to follow the recommended layout and placement guidelines, use the correct output capacitor value and type, and ensure that the input voltage is within the recommended range. Additionally, the device should be operated within the recommended temperature range, and the input and output voltages should be monitored to prevent overvoltage or undervoltage conditions.
  • The maximum input voltage that the MAX5523EUA+ can handle is 5.5V. Exceeding this voltage can cause damage to the device. It is recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed the maximum rating.
  • The MAX5523EUA+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
  • To troubleshoot issues with the MAX5523EUA+, start by checking the input voltage and current, output voltage and current, and the device's temperature. Verify that the device is properly connected and that the input and output capacitors are correctly sized and placed. Check for any signs of overheating, such as excessive heat or burning smells. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Analog Devices' technical support.
