MAX5594EUG+ - Analog Devices

Description: Digital to Analog Converters - DAC Buffered, Fast-Settling, Octal, 12/10/8-Bit, Voltage-Output DACs

Download MAX5594EUG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

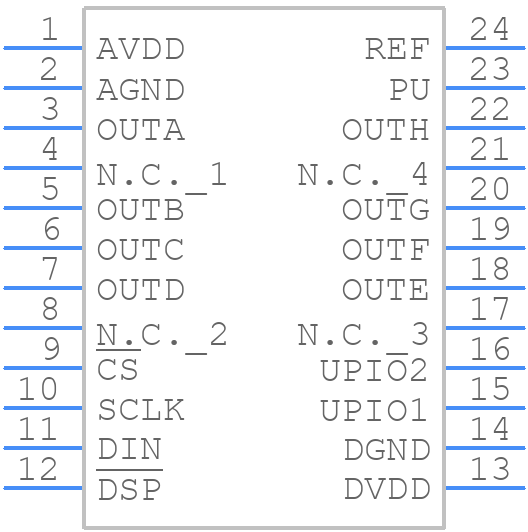

MAX5594EUG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5594EUG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U24+1
click to zoom
3D Models
MAX5594EUG+ - Analog Devices - 3D model - Small Outline Packages - U24+1
click to zoom

MAX5594EUG+ Details

  • Manufacturer Part Number:

    MAX5594EUG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-TSSOP_4.4-4.4_MM

  • Package Description:

    ROHS COMPLIANT, TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2003-11-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.25 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.8 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    4 µs

  • Settling Time-Nom (tstl):

    2 µs

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX5594EUG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5594EUG+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet. Apply the power supply to the device in the correct order (VCC, then VLOGIC), and ensure that the input voltage is within the recommended range. Also, ensure that the EN pin is properly biased to enable the device. It's also recommended to add a power-on reset circuit to ensure the device is properly initialized.
  • The MAX5594EUG+ can sink or source up to 10mA of current per output pin. However, it's essential to consider the total current consumption and ensure that it does not exceed the maximum allowed current specified in the datasheet. Additionally, it's recommended to add external resistors or buffers if the output current requirements exceed the device's capabilities.
  • To troubleshoot issues with the MAX5594EUG+, start by verifying the power supply and input voltage levels. Check the device's output voltage levels and ensure they are within the expected range. Use an oscilloscope to verify the output waveforms and check for any signs of oscillation or instability. Also, review the PCB layout and ensure it meets the recommended guidelines. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support for further assistance.
  • The MAX5594EUG+ is rated for operation up to 125°C. However, it's essential to consider the device's thermal characteristics and ensure that the junction temperature does not exceed the maximum allowed temperature specified in the datasheet. Additionally, it's recommended to follow the recommended operating conditions and derate the device's performance accordingly. Consult the datasheet and application notes for more information on high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5594EUG+ Overview

Use the download button to access the MAX5594EUG+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX55, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
