MAX5715BAUD+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX5715BAUD+ - DAC, 12BIT, QUAD, TSSOP-14

Download MAX5715BAUD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

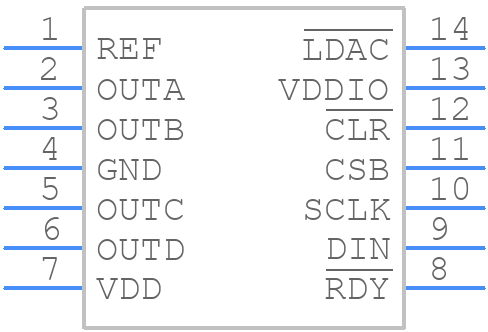

Symbol
MAX5715BAUD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5715BAUD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
MAX5715BAUD+ - Analog Devices - 3D model - Small Outline Packages - TSSOP
click to zoom

MAX5715BAUD+ Details

  • Manufacturer Part Number:

    MAX5715BAUD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4-4.4_MM

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2012-07-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.024%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    1.5 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX5715BAUD+ Frequently Asked Questions (FAQs)

  • The MAX5715BAUD+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The MAX5715BAUD+ requires a single 3.3V or 5V power supply. It is recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The power sequencing requirements are critical, and it is recommended to power up the device in the following order: VCC, followed by the input voltage (VIN). The power-down sequence should be reversed.
  • The MAX5715BAUD+ requires input and output filtering to minimize noise and ensure optimal performance. It is recommended to use a 1uF to 10uF ceramic capacitor at the input (VIN) and a 1uF to 10uF ceramic capacitor at the output (VOUT). Additionally, it is recommended to use a ferrite bead or a common-mode choke at the input and output to further reduce noise.
  • To troubleshoot common issues with the MAX5715BAUD+, it is recommended to check the input voltage, output voltage, and power supply noise. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Check for oscillations by monitoring the output voltage with an oscilloscope. If oscillations are present, check the layout and placement of the device, and ensure that the input and output traces are short and separate.
  • The MAX5715BAUD+ has a thermal shutdown feature that protects the device from overheating. However, it is still important to ensure proper thermal management. It is recommended to use a heat sink or a thermal pad to dissipate heat away from the device. Ensure that the device is mounted on a PCB with a solid ground plane and that the thermal vias are connected to the ground plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5715BAUD+ Overview

Use the download button to access the MAX5715BAUD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX57, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
