MAX5717GSD+ - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit Voltage DAC

Download MAX5717GSD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

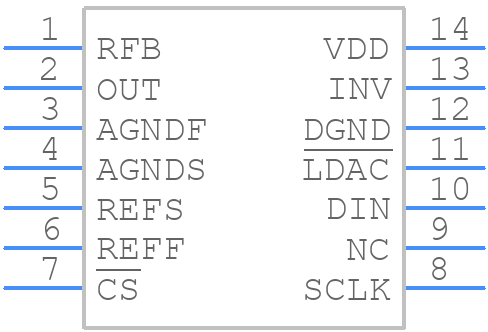

MAX5717GSD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5717GSD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 14 Narrow SO-
click to zoom
3D Models
MAX5717GSD+ - Analog Devices - 3D model - Small Outline Packages - 14 Narrow SO-
click to zoom

MAX5717GSD+ Details

  • Manufacturer Part Number:

    MAX5717GSD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2016-10-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    1.5 µs

  • Supply Current-Max:

    1.05 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5717GSD+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5717GSD+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure the MAX5717GSD+ is stable and doesn't oscillate, it's essential to follow the recommended layout and placement guidelines, use a sufficient decoupling capacitor, and ensure the input and output capacitors are properly selected. Additionally, the device should be operated within its recommended operating conditions, and the output should not be overloaded.
  • The maximum output current capability of the MAX5717GSD+ is 1A. However, the device can deliver higher currents for short durations, but it's essential to ensure the device doesn't overheat and the output voltage doesn't droop excessively.
  • The selection of input and output capacitors for the MAX5717GSD+ depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a value between 1uF to 10uF for the input capacitor and 1uF to 22uF for the output capacitor. The capacitor selection should also consider the voltage rating, ripple current, and temperature rating.
  • The thermal shutdown temperature of the MAX5717GSD+ is typically around 150°C to 160°C. When the device temperature exceeds this threshold, it will shut down to prevent damage. The device will automatically restart when the temperature drops below the thermal shutdown threshold.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5717GSD+ Overview

Use the download button to access the MAX5717GSD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX57, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
