MAX5719GSD+ - Analog Devices

Description: 20-Bit Voltage DAC 5V 50MHz SPI SOIC14

Download MAX5719GSD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

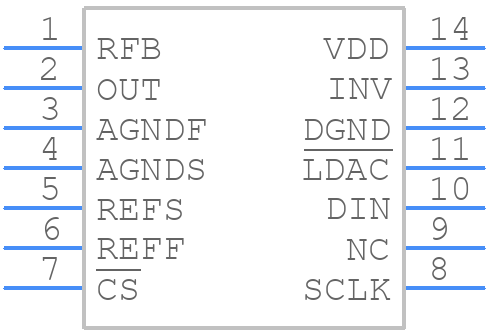

MAX5719GSD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5719GSD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 14
click to zoom
3D Models
MAX5719GSD+ - Analog Devices - 3D model - Small Outline Packages - SOIC 14
click to zoom

MAX5719GSD+ Details

  • Manufacturer Part Number:

    MAX5719GSD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-SOIC_N-150_MIL

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2016-10-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Settling Time-Nom (tstl):

    1.5 µs

  • Supply Current-Max:

    1.05 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX5719GSD+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5719GSD+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, the device should be placed near the power source to minimize voltage drops.
  • To ensure the MAX5719GSD+ is stable and does not oscillate, it is recommended to follow the layout and placement guidelines, use a sufficient output capacitor (at least 10uF), and ensure the input voltage is within the recommended range. Additionally, the device should be decoupled from the power source using a 10uF capacitor and a 1Ω resistor in series.
  • The maximum input voltage that can be applied to the MAX5719GSD+ is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the recommended range.
  • The MAX5719GSD+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX5719GSD+, start by verifying the input voltage and current, and ensuring the device is properly decoupled from the power source. Check the output voltage and current, and verify that the device is not overheating. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5719GSD+ Overview

Use the download button to access the MAX5719GSD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX57, or try a keyword search, such as Digital to Analog Converters
