MAX5742AUB+ - Analog Devices

Description: Maxim MAX5742AUB+, 4-channel 12 bit Serial DAC, 10-Pin μMAX

Download MAX5742AUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

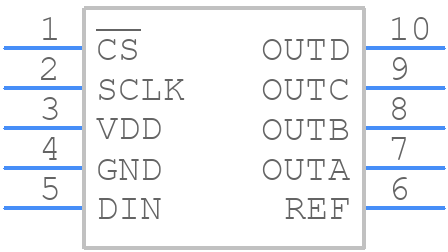

MAX5742AUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5742AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10CN+1
click to zoom
3D Models
MAX5742AUB+ - Analog Devices - 3D model - Small Outline Packages - U10CN+1
click to zoom

MAX5742AUB+ Details

  • Manufacturer Part Number:

    MAX5742AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    5 X 3 MM, MO-187CBA, MICRO, SOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2001-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5742AUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX5742AUB+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure proper power-up and initialization, make sure to follow the power-up sequence specified in the datasheet. Apply power to the VCC pin first, followed by the VDD pin. The device will automatically initialize and start operating once both power pins are applied. Additionally, ensure that the input voltage is within the recommended operating range.
  • The maximum current that can be drawn from the MAX5742AUB+ output depends on the specific output configuration and the ambient temperature. Refer to the datasheet for the output current specifications. In general, the device can deliver up to 100mA of output current per channel.
  • The MAX5742AUB+ output voltage can be configured using external resistors. The output voltage is determined by the ratio of the resistors connected to the FB pin. Refer to the datasheet for the resistor calculation formula and example configurations.
  • The EN (Enable) pin on the MAX5742AUB+ is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and operates normally. When the EN pin is pulled low, the device is disabled and enters a low-power shutdown mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5742AUB+ Overview

Use the download button to access the MAX5742AUB+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX57, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
