MAX5805BAUB+T - Analog Devices

Description: Digital to Analog Converters - DAC Ultra-Small, Single-Channel, 8-/10-/12-Bit Buffered Output Voltage DACs with Internal Reference and IC

Download MAX5805BAUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

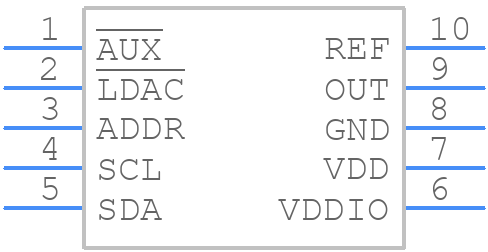

MAX5805BAUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5805BAUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10+2_2021
click to zoom
3D Models
MAX5805BAUB+T - Analog Devices - 3D model - Small Outline Packages - U10+2_2021
click to zoom

MAX5805BAUB+T Details

  • Manufacturer Part Number:

    MAX5805BAUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MICROMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2012-11-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Nom (tstl):

    6.3 µs

  • Supply Current-Max:

    0.41 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5805BAUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5805BAUB+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, use a low-ESR output capacitor (e.g., X5R or X7R dielectric) and a high-quality input capacitor. Also, avoid using long input traces and keep the input and output capacitors close to the device.
  • The MAX5805BAUB+T can handle input voltages up to 6V, but it's recommended to keep the input voltage below 5.5V to ensure reliable operation and to prevent damage to the device.
  • The MAX5805BAUB+T is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation. Additionally, consider using a heat sink or a thermal pad to dissipate heat.
  • To troubleshoot issues with the MAX5805BAUB+T, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly soldered and that there are no shorts or opens on the PCB. Consult the datasheet and application notes for more troubleshooting tips.
