MAX5820LEUA+ - Analog Devices

Description: Digital to Analog Converters - DAC 8-Bit 2Ch Precision DAC

Download MAX5820LEUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

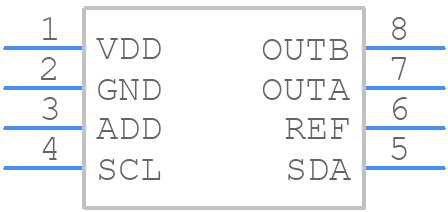

MAX5820LEUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5820LEUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX5820LEUA+
click to zoom
3D Models
MAX5820LEUA+ - Analog Devices - 3D model - Small Outline Packages - MAX5820LEUA+
click to zoom

MAX5820LEUA+ Details

  • Manufacturer Part Number:

    MAX5820LEUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Package Description:

    MO-187C-AA, MICRO SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2005-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.3906%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    12 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    0.215 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX5820LEUA+ Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the MAX5820LEUA+ can be found in the application note AN-1149, which provides guidelines for PCB layout, component placement, and routing to ensure optimal performance and minimize noise.
  • The output voltage of the MAX5820LEUA+ can be selected by connecting the VOUT pin to a specific voltage divider network. The datasheet provides a table with recommended resistor values for common output voltages. Additionally, the ADI website provides a voltage regulator selection tool that can help with selecting the correct output voltage and component values.
  • The maximum input voltage that the MAX5820LEUA+ can handle is 5.5V. Exceeding this voltage can cause damage to the device. It is recommended to add input voltage protection, such as a voltage supervisor or a transient voltage suppressor, to ensure the device operates within its specified voltage range.
  • To ensure the MAX5820LEUA+ from oscillating, it is recommended to follow the recommended layout and routing guidelines, use a high-quality output capacitor with a low equivalent series resistance (ESR), and ensure the input voltage is within the specified range. Additionally, the datasheet provides a stability analysis section that provides guidance on selecting the correct output capacitor and input voltage range to ensure stability.
  • The thermal derating of the MAX5820LEUA+ is specified in the datasheet. The device has a maximum junction temperature (TJ) of 150°C, and the output current is derated based on the ambient temperature (TA). The datasheet provides a thermal derating curve that can be used to determine the maximum output current at a given ambient temperature.
