MAX5825AWP+T - Analog Devices

Description: Digital to Analog Converters - DAC Ultra-Small, Octal Channel, 12-Bit Buffered Output DACs with Internal Reference and IC Interface

Download MAX5825AWP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

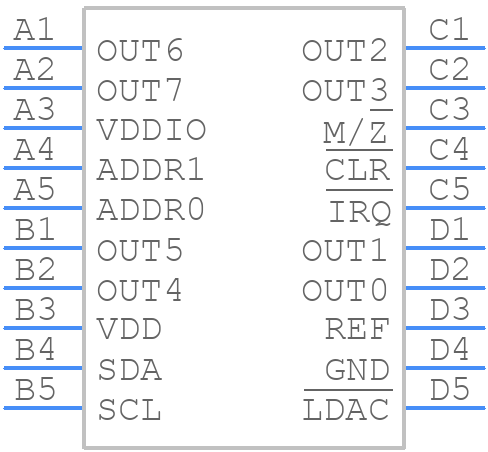

MAX5825AWP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5825AWP+T - Analog Devices PCB footprint - BGA - BGA - W202C2+1
click to zoom
3D Models
MAX5825AWP+T - Analog Devices - 3D model - BGA - W202C2+1
click to zoom

MAX5825AWP+T Details

  • Manufacturer Part Number:

    MAX5825AWP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-WLCSP-N/A

  • Package Description:

    WLP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2012-02-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PBGA-B20

  • Length:

    2.505 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.69 mm

  • Settling Time-Nom (tstl):

    4.5 µs

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.255 mm

MAX5825AWP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5825AWP+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To select the correct output voltage, you need to consider the input voltage range, output current requirement, and the desired output voltage. The MAX5825AWP+T has a programmable output voltage range of 0.9V to 5.5V. You can use the datasheet's output voltage selection table or the online voltage selector tool provided by Analog Devices to determine the correct output voltage for your application.
  • The MAX5825AWP+T has an absolute maximum input voltage rating of 6.5V. However, the recommended input voltage range is 2.7V to 5.5V. Operating the device above the recommended input voltage range may affect its performance and reliability.
  • To ensure stability, it's essential to follow the datasheet's guidelines for output capacitance, equivalent series resistance (ESR), and output voltage ripple. A minimum output capacitance of 10uF with an ESR of 0.1Ω to 1Ω is recommended. Additionally, the output voltage ripple should be kept below 1% of the output voltage. You can also use the datasheet's stability analysis tool to determine the optimal output capacitance and ESR for your application.
  • The MAX5825AWP+T has a thermal derating of 12.5mA/°C above 25°C. This means that the device's output current capability decreases as the ambient temperature increases. You need to consider the thermal derating when designing your application, especially in high-temperature environments. You can use the datasheet's thermal derating curves to determine the maximum output current at a given temperature.
