MAX5842LEUB+ - Analog Devices

Description: MAX5842LEUB+, 12 bit-Bit DAC Quad I2C, 10-Pin μMAX

Download MAX5842LEUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

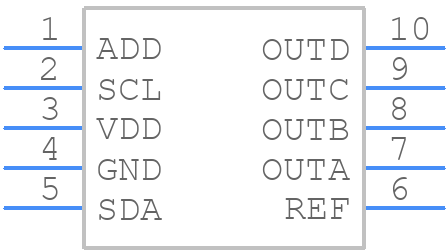

MAX5842LEUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5842LEUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - µMAX
click to zoom
3D Models
MAX5842LEUB+ - Analog Devices - 3D model - Small Outline Packages - µMAX
click to zoom

MAX5842LEUB+ Details

  • Manufacturer Part Number:

    MAX5842LEUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    MINIATURE, MICRO MAX PACKAGE-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2002-02-21

  • Manufacturer:

    Analog Devices Inc
