MAX5853ETL+ - Analog Devices

Description: Digital to Analog Converters - DAC Dual, 10-Bit, 80Msps, Current-Output DAC

Download MAX5853ETL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

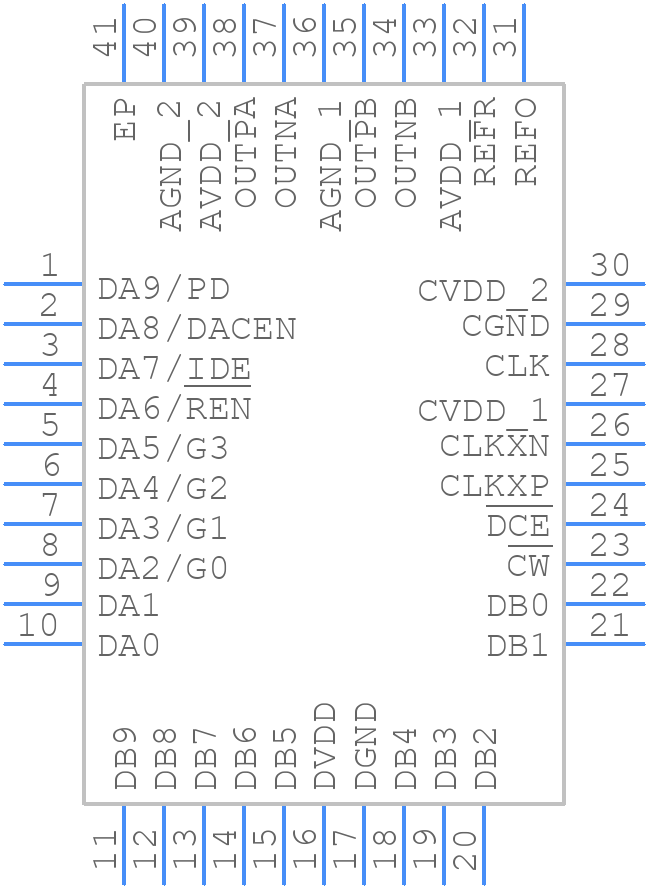

MAX5853ETL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5853ETL+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40 Thin QFN
click to zoom
3D Models
MAX5853ETL+ - Analog Devices - 3D model - Quad Flat No-Lead - 40 Thin QFN
click to zoom

MAX5853ETL+ Details

  • Manufacturer Part Number:

    MAX5853ETL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-6X6X0.75

  • Package Description:

    TQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2004-02-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.25 V

  • Analog Output Voltage-Min:

    -1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Settling Time-Nom (tstl):

    0.012 µs

  • Supply Current-Max:

    46 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

MAX5853ETL+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5853ETL+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, use short traces and avoid routing digital signals near the analog inputs. Refer to the application note AN-1149 for more detailed guidelines.
  • To configure the internal voltage regulator, connect the VCC pin to a suitable power source, and set the EN pin high to enable the regulator. The output voltage can be adjusted by connecting a resistive divider network between the VOUT pin and the VCC pin. Refer to the datasheet for the recommended resistive divider values and equations.
  • The maximum allowed input voltage for the MAX5853ETL+ is 5.5V. Exceeding this voltage can cause permanent damage to the device. It's essential to ensure that the input voltage remains within the recommended range to maintain the device's reliability and prevent premature failure.
  • The MAX5853ETL+ has an internal overcurrent protection circuit that limits the output current to prevent damage. The typical current limit values are 1.5A for the 3.3V output and 1A for the 1.8V output. However, these values can vary depending on the specific application and operating conditions.
  • The thermal shutdown temperature for the MAX5853ETL+ is typically around 150°C. When the device's junction temperature exceeds this value, it will shut down to prevent damage. Once the temperature drops below the thermal shutdown threshold, the device will automatically restart.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5853ETL+ Overview

Use the download button to access the MAX5853ETL+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX58, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
