MAX5862CUXH+ - Analog Devices

Description: Integrated Downstream Cable QAM ModulatorHigh-Density: 8, 16, 24, or 32 QAM Channels14-Bit 4.6Gsps RF-DACDOCSIS 3.0 DRFI CompliantHighly Flexible and ConfigurableRRC Filters Support ITU-T J.83 Annex A, B, and C1MHz to 8MHz Channel BandwidthFull Carrier Agility within Each of Four 192MHz BlocksBlock Agility within 950MHz Output BandwidthReconfigurable Without Service InterruptionInput Symbol Rate: 1Msym/s to 7.14Msym/sIndependently Set for Each ChannelIntegrated QAM Mapper (16/32/64/128/256-QAM)Supports All

Download MAX5862CUXH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX5862CUXH+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

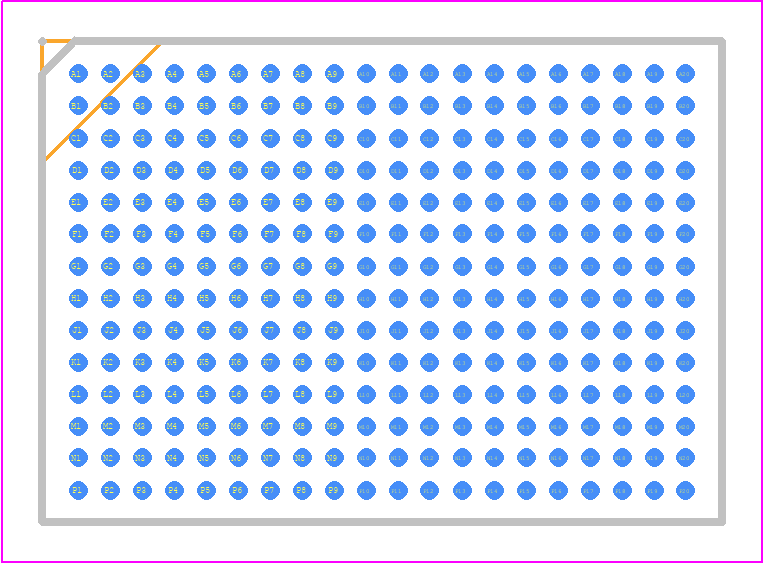

MAX5862CUXH+ - Analog Devices PCB footprint - BGA - BGA - 280 FCBGA
click to zoom
3D Models
MAX5862CUXH+ - Analog Devices - 3D model - BGA - 280 FCBGA
click to zoom

MAX5862CUXH+ Details

  • Manufacturer Part Number:

    MAX5862CUXH+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    280-CSP_BGA-17X12X0.92

  • Pin Count:

    280

  • Manufacturer Package Code:

    280-CSP_BGA-17X12X0.92

  • Date Of Intro:

    2013-12-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • RF/Microwave Device Type:

    MODULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5862CUXH+ Overview

Use the download button to access the MAX5862CUXH+ schematic symbol, PCB footprint, and 3D model.
