MAX5862DUXH+ - Analog Devices

Description: High-Density Downstream Cable QAM Modulator Low Power, Fully Integrated, Symbols-to-QAM RF Solution: 131mW/QAM in 12mm x 17mm BGA

Download MAX5862DUXH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX5862DUXH+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

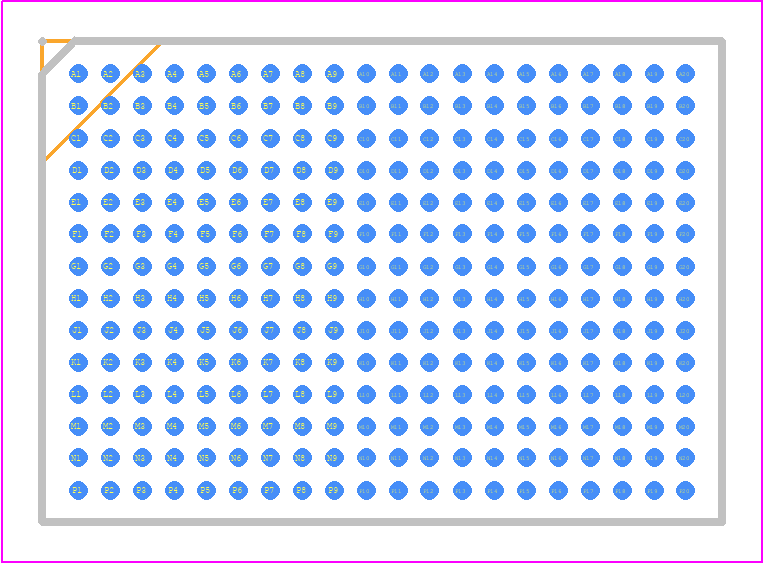

MAX5862DUXH+ - Analog Devices PCB footprint - BGA - BGA - X28027FM+1
click to zoom
3D Models
MAX5862DUXH+ - Analog Devices - 3D model - BGA - X28027FM+1
click to zoom

MAX5862DUXH+ Details

  • Manufacturer Part Number:

    MAX5862DUXH+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    280-CSP_BGA-17X12X0.92

  • Pin Count:

    280

  • Manufacturer Package Code:

    280-CSP_BGA-17X12X0.92

  • Date Of Intro:

    2013-12-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • RF/Microwave Device Type:

    MODULATOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5862DUXH+ Overview

Use the download button to access the MAX5862DUXH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX58, or try a keyword search, such as RF/Microwave Modulator/Demodulators
