MAX5865ETM+ - Analog Devices

Description: Analog Front End - AFE Ultra-Low-Power, High-Dynamic-Performance, 40Msps Analog Front End

Download MAX5865ETM+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

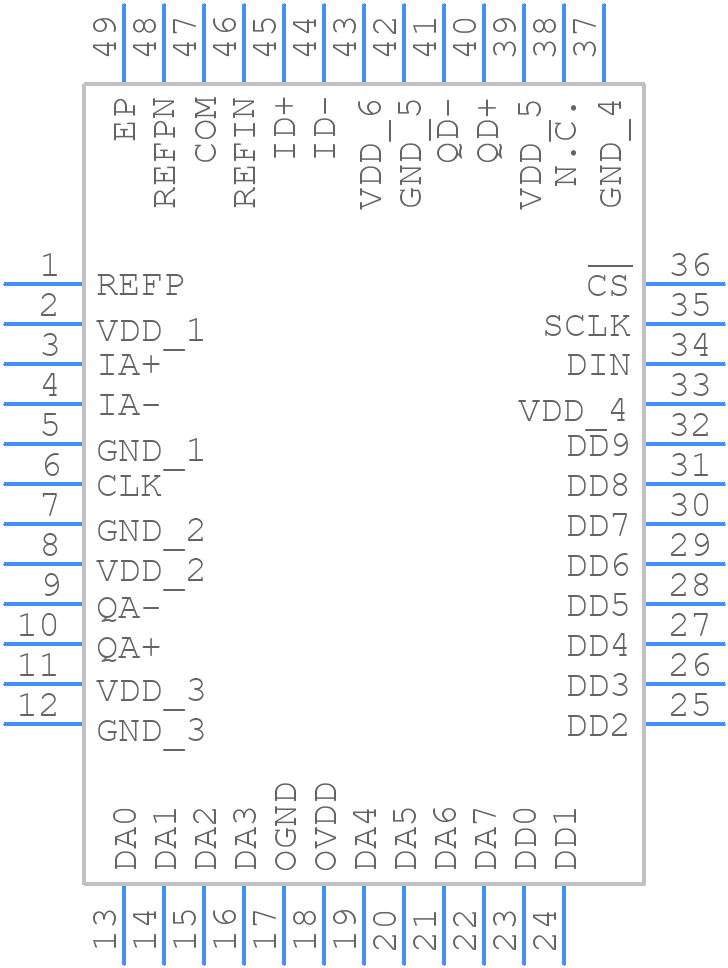

MAX5865ETM+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5865ETM+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX5865ETM+-1
click to zoom
3D Models
MAX5865ETM+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX5865ETM+-1
click to zoom

MAX5865ETM+ Details

  • Manufacturer Part Number:

    MAX5865ETM+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    7 X 7 MM, 0.80 MM HEIGHT, TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2003-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX5865ETM+ Frequently Asked Questions (FAQs)

  • The MAX5865ETM+ requires careful layout and placement to minimize noise and ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To optimize the performance of the MAX5865ETM+, it's essential to consider factors such as input voltage, output current, and operating frequency. Engineers should consult the datasheet and application notes to determine the optimal component values, layout, and configuration for their specific application.
  • The MAX5865ETM+ has a maximum junction temperature of 150°C. Engineers should ensure proper heat sinking and thermal management to prevent overheating, especially in high-power applications. The device's thermal resistance and power dissipation should be carefully considered during the design process.
  • When troubleshooting issues with the MAX5865ETM+, engineers should first consult the datasheet and application notes to ensure proper configuration and operation. Common issues include incorrect input voltage, inadequate decoupling, and layout-related noise. Engineers can use oscilloscopes and other diagnostic tools to identify and resolve issues.
  • The MAX5865ETM+ is a high-frequency device that can generate electromagnetic interference (EMI). Engineers should take steps to minimize EMI and ensure electromagnetic compatibility (EMC) by following proper layout and shielding techniques, using EMI filters, and complying with relevant regulatory standards.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX5865ETM+ Overview

Use the download button to access the MAX5865ETM+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX58, or try a keyword search, such as Cellular Telephone Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
