MAX5865ETM+T - Analog Devices

Description: Ultra-Low-Power, High-Dynamic-Performance, 40Msps Analog Front End

Download MAX5865ETM+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

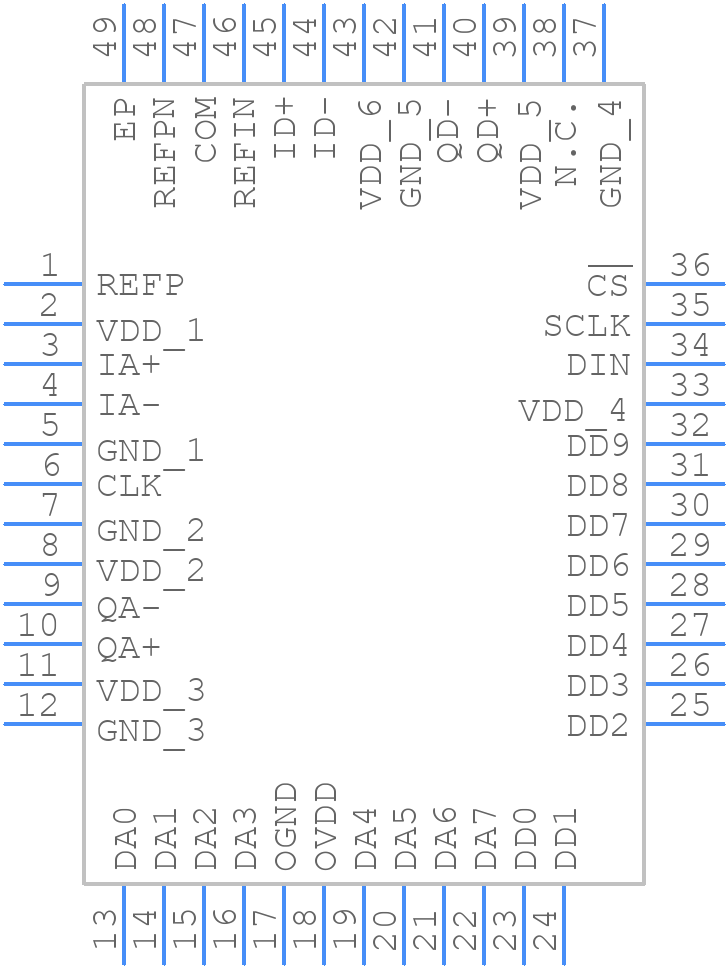

MAX5865ETM+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX5865ETM+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX5865ETM+T
click to zoom
3D Models
MAX5865ETM+T - Analog Devices - 3D model - Quad Flat No-Lead - MAX5865ETM+T
click to zoom

MAX5865ETM+T Details

  • Manufacturer Part Number:

    MAX5865ETM+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    48-LFCSP-7X7X0.75

  • Package Description:

    7 X 7 MM, 0.80 MM HEIGHT, TQFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    48-LFCSP-7X7X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2003-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

MAX5865ETM+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5865ETM+T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to place the device close to the power supply and to use a low-ESR capacitor for decoupling.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected and placed, and that the device is operated within its recommended operating conditions.
  • The maximum input voltage that the MAX5865ETM+T can handle is 5.5V. Exceeding this voltage can cause damage to the device.
  • The MAX5865ETM+T is rated for operation up to 125°C. However, it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the MAX5865ETM+T, start by checking the power supply and input/output connections. Verify that the device is properly configured and that the input and output voltages are within the recommended ranges. Use an oscilloscope to check for oscillations or other anomalies.
