MAX5875EGK+D - Analog Devices

Description: Digital to Analog Converters - DAC 16-Bit, 200Msps, High-Dynamic-Performance, Dual DAC with CMOS Inputs

Download MAX5875EGK+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX5875EGK+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints

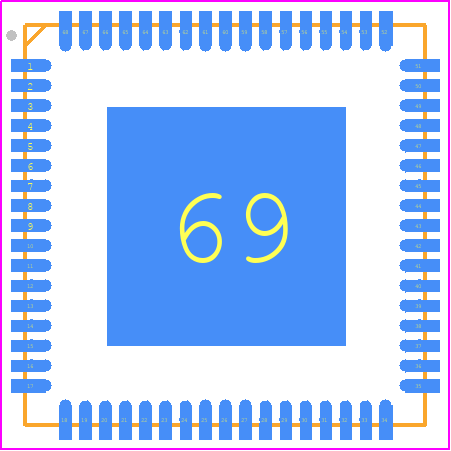

MAX5875EGK+D - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - G6800+4
click to zoom
3D Models
MAX5875EGK+D - Analog Devices - 3D model - Quad Flat No-Lead - G6800+4
click to zoom

MAX5875EGK+D Details

  • Manufacturer Part Number:

    MAX5875EGK+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    68-LFCSP-10X10X0.85

  • Package Description:

    HVQCCN, LCC68,.4SQ,20

  • Pin Count:

    68

  • Manufacturer Package Code:

    68-LFCSP-10X10X0.85

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2005-02-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N68

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    0.014 µs

  • Supply Current-Max:

    56 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX5875EGK+D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5875EGK+D involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to minimize the length of the traces between the device and the capacitors.
  • The choice of input and output capacitors for the MAX5875EGK+D depends on the specific application requirements. In general, a low-ESR ceramic capacitor with a value between 10uF to 22uF is recommended for the input capacitor, while a low-ESR tantalum or ceramic capacitor with a value between 10uF to 47uF is recommended for the output capacitor. The capacitor values should be chosen based on the desired output voltage ripple and transient response.
  • The MAX5875EGK+D can handle an input voltage up to 5.5V, but it's recommended to operate the device within the specified input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The output voltage of the MAX5875EGK+D can be programmed using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors in the divider network and the internal reference voltage of the device. The output voltage can be calculated using the formula: VOUT = VREF x (R1 + R2) / R2, where VREF is the internal reference voltage, R1 and R2 are the resistors in the divider network.
  • The typical startup time of the MAX5875EGK+D is around 100us to 200us, depending on the input voltage and output load. However, this time can vary depending on the specific application and operating conditions.
