MAX5877EGK+D - Analog Devices

Description: 14-Bit, 250Msps, High-Dynamic-Performance, Dual DAC with LVDS Inputs

Download MAX5877EGK+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX5877EGK+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints

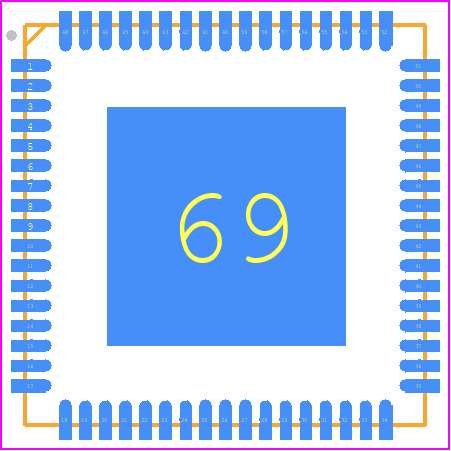

MAX5877EGK+D - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - G6800+4
click to zoom
3D Models
MAX5877EGK+D - Analog Devices - 3D model - Quad Flat No-Lead - G6800+4
click to zoom

MAX5877EGK+D Details

  • Manufacturer Part Number:

    MAX5877EGK+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    68-LFCSP-10X10X0.85

  • Package Description:

    HVQCCN, LCC68,.4SQ,20

  • Pin Count:

    68

  • Manufacturer Package Code:

    68-LFCSP-10X10X0.85

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2005-05-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    1.1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N68

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    0.014 µs

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX5877EGK+D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5877EGK+D involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The MAX5877EGK+D has a programmable output voltage that can be set using the VSET pin. The output voltage can be calculated using the formula: VOUT = (VSET x R1) / R2, where R1 and R2 are the resistors connected to the VSET pin. The datasheet provides a table with recommended resistor values for different output voltages. Additionally, the output voltage can be adjusted using an external resistor divider network.
  • The MAX5877EGK+D has an absolute maximum input voltage rating of 6V. However, the recommended input voltage range is 2.7V to 5.5V. Exceeding the absolute maximum input voltage can damage the device.
  • To ensure stability, the MAX5877EGK+D requires a minimum output capacitance of 10uF. Additionally, the output capacitor should have a low equivalent series resistance (ESR) to prevent oscillation. The datasheet provides a list of recommended output capacitors that meet these requirements.
  • The MAX5877EGK+D has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at high temperatures. The datasheet provides thermal derating curves that should be consulted to ensure the device operates within its specifications at high temperatures.
