MAX5887EGK+D - Analog Devices

Description: 3.3V, 14-Bit, 500Msps High Dyn

Download MAX5887EGK+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX5887EGK+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints

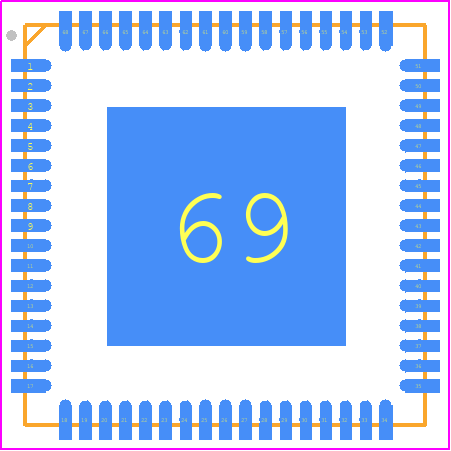

MAX5887EGK+D - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN_68
click to zoom
3D Models
MAX5887EGK+D - Analog Devices - 3D model - Quad Flat No-Lead - QFN_68
click to zoom

MAX5887EGK+D Details

  • Manufacturer Part Number:

    MAX5887EGK+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    68-LFCSP-10X10X0.85

  • Package Description:

    HVQCCN, LCC68,.4SQ,20

  • Pin Count:

    68

  • Manufacturer Package Code:

    68-LFCSP-10X10X0.85

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2003-05-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    1.1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N68

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.8%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    0.011 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX5887EGK+D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5887EGK+D involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane. The datasheet provides a recommended PCB layout, but it's also recommended to consult with Analog Devices' application notes and layout guidelines for more detailed information.
  • The MAX5887EGK+D has a built-in thermal shutdown feature that shuts down the device when the junction temperature exceeds 150°C. To handle this feature, it's recommended to ensure good thermal dissipation on the PCB, such as using thermal vias and a heat sink if necessary. Additionally, the device should be operated within the recommended operating temperature range, and the thermal shutdown feature should be monitored through the TSD pin.
  • The recommended input common-mode voltage range for the MAX5887EGK+D is 0.5V to 4.5V. Operating outside of this range may affect the device's performance and accuracy. It's recommended to ensure that the input common-mode voltage is within this range to ensure optimal performance.
  • The MAX5887EGK+D does not require calibration, as it is a fully calibrated device. However, it's recommended to follow the recommended layout and assembly guidelines, and to ensure that the device is operated within the recommended operating conditions. Additionally, the device's performance can be optimized by adjusting the gain and offset settings through the digital interface.
  • The MAX5887EGK+D can achieve a maximum data rate of 100ksps (kilosamples per second). However, the actual data rate may be limited by the system's bandwidth, noise, and other factors. It's recommended to consult with the datasheet and application notes for more detailed information on achieving the maximum data rate.
