MAX5888EGK+D - Analog Devices

Description: 3.3V, 16-Bit, 500Msps High Dynamic Performance DAC with Differential LVDS Inputs

Download MAX5888EGK+D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX5888EGK+D - Analog Devices - PCB symbol
click to zoom
PCB Footprints

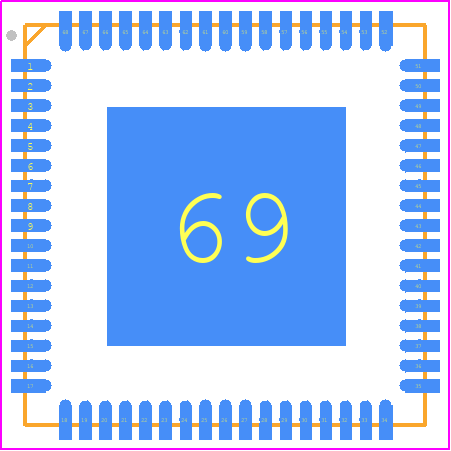

MAX5888EGK+D - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 68L QFN, 10x10x0.9 MM
click to zoom
3D Models
MAX5888EGK+D - Analog Devices - 3D model - Quad Flat No-Lead - 68L QFN, 10x10x0.9 MM
click to zoom

MAX5888EGK+D Details

  • Manufacturer Part Number:

    MAX5888EGK+D

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    68-LFCSP-10X10X0.85

  • Package Description:

    HVQCCN, LCC68,.4SQ,20

  • Pin Count:

    68

  • Manufacturer Package Code:

    68-LFCSP-10X10X0.85

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.40

  • Date Of Intro:

    2003-01-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    1.1 V

  • Analog Output Voltage-Min:

    -0.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    S-XQCC-N68

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Linearity Error-Max (EL):

    0.008%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC68,.4SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Settling Time-Nom (tstl):

    0.011 µs

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

MAX5888EGK+D Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX5888EGK+D involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and to avoid routing digital signals near the analog inputs.
  • To filter the output of the MAX5888EGK+D, you can use a low-pass filter with a cutoff frequency set to the Nyquist frequency (half the sampling rate). A 2nd-order or 3rd-order Butterworth filter is recommended. You can also use a digital filter in your application code to further reduce noise and aliasing.
  • The MAX5888EGK+D can handle input voltages up to 6V, but it's recommended to limit the input voltage to 5.5V to ensure reliable operation and to prevent damage to the device.
  • To calibrate the MAX5888EGK+D, you can use the internal calibration feature or perform an external calibration using a known input signal. The internal calibration feature can be enabled by setting the CAL bit in the control register. For external calibration, you'll need to apply a known input signal and adjust the offset and gain registers accordingly.
  • The recommended power-up sequence for the MAX5888EGK+D is to first power up the analog supply (AVDD) and then the digital supply (DVDD). The power-up sequence should be controlled to ensure that the analog supply is stable before the digital supply is powered up.
