- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX5974DETE+
- Part Number MAX5974DETE+
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P300X300X80-17N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX5974DETE+ Details
-
Manufacturer Part Number:
MAX5974DETE+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-LFCSP-3X3X0.75
-
Package Description:
TQFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
16-LFCSP-3X3X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2010-07-23
MAX5974DETE+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX5974DETE+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
-
To ensure proper power-up and power-down, the MAX5974DETE+ should be powered up and down slowly (typically 1-10ms) to prevent inrush currents and voltage spikes. Additionally, the input voltage should be ramped up and down monotonically to prevent voltage overshoots.
-
The MAX5974DETE+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related performance characteristics.
-
Yes, the MAX5974DETE+ is suitable for high-reliability and high-availability applications. It has a high MTBF (mean time between failures) rating and is designed to meet the requirements of critical systems. However, the user should consult the datasheet and relevant industry standards for specific reliability and availability requirements.
-
To troubleshoot common issues with the MAX5974DETE+, the user should first consult the datasheet and application notes for guidance. Common issues can often be resolved by checking the input voltage, output load, and PCB layout. The user may also need to use specialized equipment, such as an oscilloscope, to diagnose and resolve the issue.
Trust Checks
System Verified
MAX5974DETE+ Overview

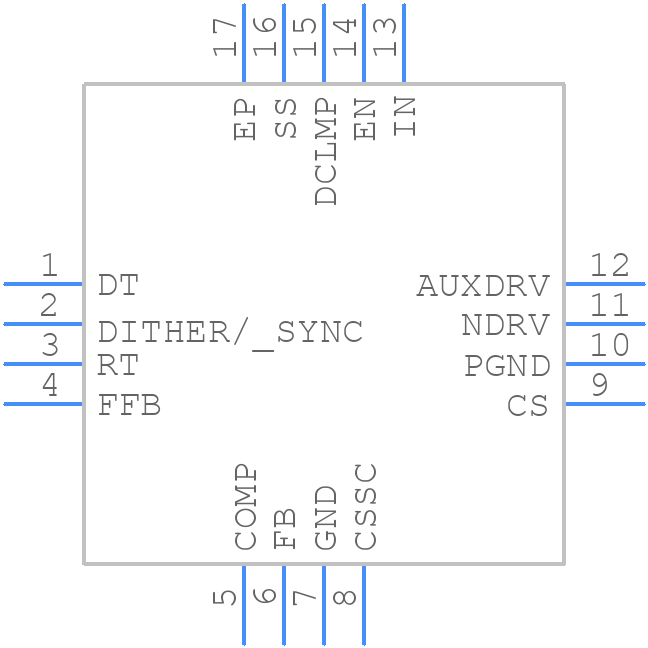

Use the download button to access the MAX5974DETE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX59,
or try a keyword search, such as Switching Regulator or Controllers
