MAX604ESA+T footprint, schematic symbol and 3D model by Analog Devices

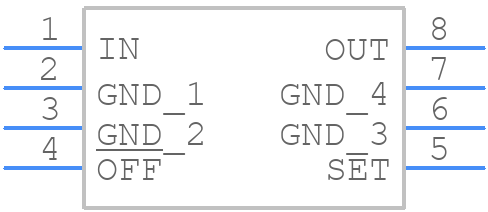

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX604ESA+T
Part Number MAX604ESA+T
Manufacturer Analog Devices
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - -8 so
Released Date Jan 2, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX604ESA+T Details

Manufacturer Part Number:
MAX604ESA+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
8-SOIC_N-150_MIL
Package Description:
0.150 INCH, SO-8
Pin Count:
8
Manufacturer Package Code:
8-SOIC_N-150_MIL
Reach Compliance Code:
Compliant
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
1994-09-01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Adjustability:
FIXED/ADJUSTABLE
Dropout Voltage1-Max:
0.82 V
Dropout Voltage1-Nom:
0.48 V
Input Voltage Absolute-Max:
12 V
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Line Regulation-Max:
0.04%
Line Regulation-Max (%/V):
0.33
Load Regulation-Max:
0.1%
Load Regulation-Max(%):
8%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.5 A
Output Voltage1-Max:
3.45 V
Output Voltage1-Min:
3.15 V
Output Voltage1-Nom:
3.3 V
Output Voltage2-Max:
11 V
Output Voltage2-Min:
1.25 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.75 mm
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
4.5%
Width:
3.9 mm

MAX604ESA+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAX604ESA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 4.5V to 5.5V. Additionally, ensure that the output voltage (VOUT) is properly decoupled with a 10uF capacitor.
The MAX604ESA+T can deliver up to 150mA of output current. However, it's recommended to limit the output current to 100mA or less to ensure reliable operation and to prevent overheating.
To protect the MAX604ESA+T from input voltage transients and spikes, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help to limit the voltage to within the recommended range and prevent damage to the device.
The MAX604ESA+T has a thermal shutdown temperature of 150°C. If the device temperature exceeds this limit, it will shut down to prevent damage. It's essential to ensure proper heat sinking and airflow to prevent overheating.

Trust Checks

Community Provided

System Verified

Community Approved

MAX604ESA+T Overview

Use the download button to access the MAX604ESA+T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX60, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
