MAX628CSA+ - Analog Devices

Description: MAX628CSA+, Dual MOSFET Power Driver, 2A, 4.5 → 18 V, 8-Pin SOIC

Download MAX628CSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

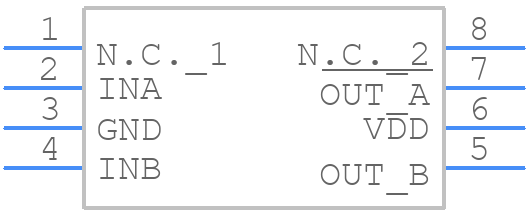

Symbol
MAX628CSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX628CSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-3
click to zoom
3D Models
MAX628CSA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO-3
click to zoom

MAX628CSA+ Details

  • Manufacturer Part Number:

    MAX628CSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-05-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3.9 mm

MAX628CSA+ Frequently Asked Questions (FAQs)

  • The MAX628CSA+ is a high-precision voltage reference, and its performance can be affected by the PCB layout and placement. It is recommended to place the device close to the power supply, use a solid ground plane, and keep the input and output traces short and separate to minimize noise and interference.
  • To ensure accuracy and stability, it is recommended to use a high-quality power supply, minimize thermal gradients, and avoid exposing the device to mechanical stress or vibration. Additionally, the output voltage can be trimmed using an external resistor network to compensate for any initial errors or drift over time.
  • The MAX628CSA+ can drive a maximum capacitive load of 10nF. Exceeding this limit can cause oscillations or instability in the output voltage. If a larger capacitive load is required, an external buffer amplifier can be used to isolate the load from the voltage reference.
  • The MAX628CSA+ has built-in protection against overvoltage and reverse voltage conditions. However, it is still recommended to use external protection devices such as TVS diodes or zener diodes to protect the device from voltage transients or faults in the power supply.
  • The MAX628CSA+ is specified to operate over a temperature range of -40°C to +125°C. However, the device's accuracy and stability may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
