MAX629ESA+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX629ESA+T - DC-DC Switching Boost, Flyback, Inverting, SEPIC Regulator, 2.7V-5.5Vin, 800mV-28V/0.5A out, NSOIC-8

Download MAX629ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

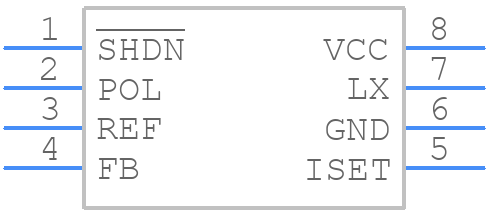

Symbol
MAX629ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX629ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX629ESA+T - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX629ESA+T Details

  • Manufacturer Part Number:

    MAX629ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.39 A

  • Output Voltage-Nom:

    28 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    300 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX629ESA+T Frequently Asked Questions (FAQs)

  • The MAX629ESA+T is a high-frequency device, and proper layout and placement are crucial to minimize noise and ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device.
  • To ensure the MAX629ESA+T is properly biased and configured, refer to the datasheet for the recommended biasing and configuration options. Additionally, consider consulting with an applications engineer or using simulation tools to model the device's behavior in your specific application.
  • The MAX629ESA+T has a maximum junction temperature of 150°C. To ensure it operates within a safe temperature range, consider the thermal resistance of the package, the PCB layout, and the ambient temperature. Use thermal simulation tools or consult with a thermal expert to ensure the device operates within a safe temperature range.
  • To troubleshoot issues with the MAX629ESA+T, start by reviewing the datasheet and application notes to ensure proper biasing and configuration. Use oscilloscopes and other measurement tools to identify the source of the issue. Consult with an applications engineer or a colleague who has experience with similar devices.
  • The MAX629ESA+T is a high-frequency device and can be susceptible to EMI/EMC issues. To ensure compliance with regulatory requirements, follow the guidelines provided in the datasheet and application notes, and consider using EMI/EMC simulation tools or consulting with an expert in the field.
