MAX660ESA+ - Analog Devices

Description: Charge Pump Volt Inverter -1.5V to -5.5V

Download MAX660ESA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

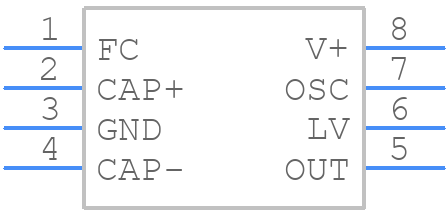

MAX660ESA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX660ESA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO
click to zoom
3D Models
MAX660ESA+ - Analog Devices - 3D model - Small Outline Packages - 8 SO
click to zoom

MAX660ESA+ Details

  • Manufacturer Part Number:

    MAX660ESA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Nom:

    -5.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    80 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX660ESA+ Frequently Asked Questions (FAQs)

  • The MAX660ESA+ is a high-frequency device, and proper layout and placement are crucial for optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the power supply decoupling capacitors.
  • The MAX660ESA+ has a maximum junction temperature of 150°C. To handle thermal considerations, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power dissipation for extended periods. Also, follow the thermal resistance and power dissipation guidelines provided in the datasheet.
  • The recommended input capacitance for the MAX660ESA+ is 10nF to 100nF, and the recommended output capacitance is 10nF to 100nF. However, the optimal capacitance values may vary depending on the specific application and operating conditions. It is recommended to experiment with different capacitance values to find the optimal values for the specific design.
  • To ensure the MAX660ESA+ is properly biased and configured, follow the application circuit and biasing guidelines provided in the datasheet. Also, consult the device's evaluation board documentation and application notes for specific configuration and biasing recommendations. Additionally, consider consulting with an experienced analog design engineer or seeking support from Analog Devices Inc.
  • Common pitfalls to avoid when designing with the MAX660ESA+ include improper layout and placement, inadequate power supply decoupling, insufficient input and output filtering, and incorrect biasing and configuration. Additionally, failing to follow the recommended operating conditions, ignoring thermal considerations, and not accounting for component tolerances can also lead to design issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX660ESA+ Overview

Use the download button to access the MAX660ESA+ schematic symbol, PCB footprint, and 3D model.
