MAX660ESA+T - Analog Devices

Description: Switching Voltage Regulators CMOS Monolithic Voltage Converter

Download MAX660ESA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

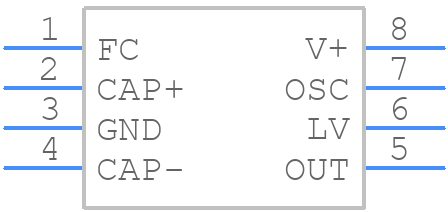

MAX660ESA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX660ESA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8SO
click to zoom
3D Models
MAX660ESA+T - Analog Devices - 3D model - Small Outline Packages - 8SO
click to zoom

MAX660ESA+T Details

  • Manufacturer Part Number:

    MAX660ESA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP, SOP8,.25

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-05-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHED CAPACITOR CONVERTER
