MAX6629MTT+T - Analog Devices

Description: Board Mount Temperature Sensors 12-Bit + Sign Digital Temperature Sensors with Serial Interface

Download MAX6629MTT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

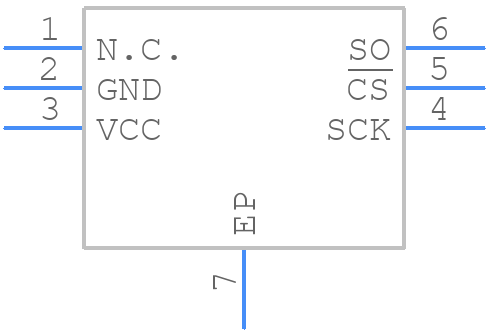

MAX6629MTT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6629MTT+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T633+2
click to zoom
3D Models
MAX6629MTT+T - Analog Devices - 3D model - Small Outline No-lead - T633+2
click to zoom

MAX6629MTT+T Details

  • Manufacturer Part Number:

    MAX6629MTT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    3 X 3 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, MO-229, TDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2001-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    3.2 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    6

  • Operating Current-Max:

    0.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    3-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.13,38

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX6629MTT+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6629MTT+T involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane is also recommended.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. A minimum of 1uF input capacitance and 2.2uF output capacitance is recommended.
  • The maximum input voltage that the MAX6629MTT+T can handle is 5.5V. Exceeding this voltage may damage the device.
  • The MAX6629MTT+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the MAX6629MTT+T, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Use an oscilloscope to check for oscillations or noise on the output.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6629MTT+T Overview

Use the download button to access the MAX6629MTT+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
