MAX6633MSA+ - Analog Devices

Description: MAX6633MSA+, 12 bit Temperature Sensor ±2.8°C SMBus, Serial-I2C 3 → 5.5 V 8-Pin SOIC

Download MAX6633MSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

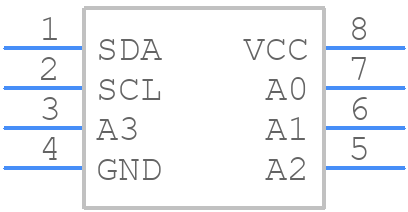

MAX6633MSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6633MSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - soic8-ren3
click to zoom
3D Models
MAX6633MSA+ - Analog Devices - 3D model - Small Outline Packages - soic8-ren3
click to zoom

MAX6633MSA+ Details

  • Manufacturer Part Number:

    MAX6633MSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    0.150 INCH, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2001-08-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.2 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX6633MSA+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6633MSA+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be decoupled from the power supply using a 10uF capacitor. If oscillations occur, try adding a 10nF capacitor in parallel with the output capacitor.
  • The maximum input voltage that the MAX6633MSA+ can handle is 5.5V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the input voltage remains within the specified range.
  • The MAX6633MSA+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures. Refer to the datasheet for more information on thermal considerations.
  • To troubleshoot issues with the MAX6633MSA+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet and application notes for more troubleshooting guidance.
