MAX6639AEE+ - Analog Devices

Description: MAX6639AEE+, 11 bit Temperature Sensor SMBus 3 → 3.6 V 16-Pin QSOP

Download MAX6639AEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

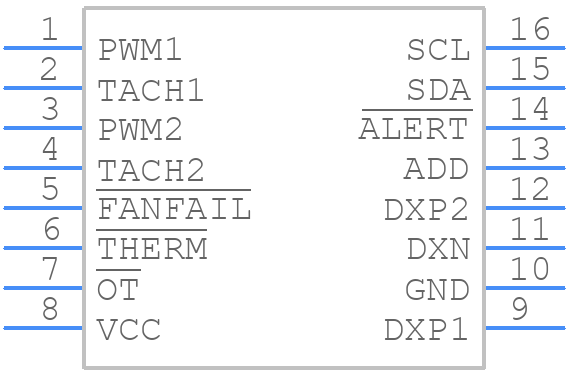

Symbol
MAX6639AEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6639AEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX6639AEE+ - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX6639AEE+ Details

  • Manufacturer Part Number:

    MAX6639AEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2005-05-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX6639AEE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6639AEE+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To optimize the performance of the MAX6639AEE+ in a noisy environment, use a low-ESR input capacitor, add a 10nF to 100nF capacitor between the VCC and GND pins, and use a ferrite bead or a common-mode choke on the input lines. Additionally, ensure that the device is placed away from noise sources and that the PCB layout is optimized for noise reduction.
  • The maximum input voltage that the MAX6639AEE+ can handle is 28V. However, the device is designed to operate with an input voltage range of 4.5V to 24V. Operating the device beyond the recommended input voltage range may affect its performance and reliability.
  • The MAX6639AEE+ is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's output current and input voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the MAX6639AEE+, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Check for noise and ripple on the input and output lines, and ensure that the device is operating within its recommended specifications. Refer to the datasheet and application notes for more troubleshooting tips.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6639AEE+ Overview

Use the download button to access the MAX6639AEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
