MAX6639ATE+ - Analog Devices

Description: Maxim MAX6639ATE+ Temperature Sensor 16-Pin TQFN, -40 → +125 °C

Download MAX6639ATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

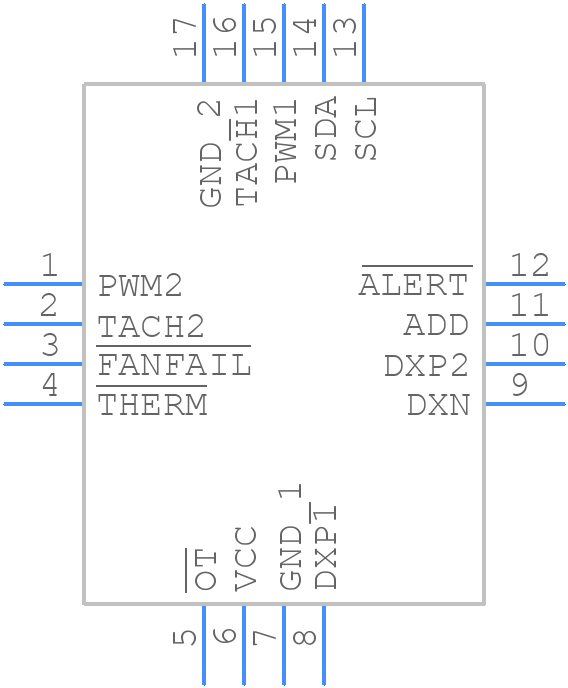

Symbol
MAX6639ATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6639ATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+3
click to zoom
3D Models
MAX6639ATE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1655+3
click to zoom

MAX6639ATE+ Details

  • Manufacturer Part Number:

    MAX6639ATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, 0.80 MM PITCH, ROHS COMPLIANT, MO-220WHHB, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2005-05-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.20SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX6639ATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6639ATE+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To optimize the performance of the MAX6639ATE+, consider the following: choose the correct input and output capacitors, ensure a low-impedance power supply, minimize the distance between the device and the load, and use a low-ESR output capacitor. Additionally, consider the operating frequency, input voltage, and output current requirements of your application.
  • The maximum input voltage that the MAX6639ATE+ can handle is 5.5V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage remains within the recommended operating range to maintain the device's reliability and performance.
  • The MAX6639ATE+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and cooling requirements of your application to ensure the device operates within its recommended temperature range.
  • To troubleshoot issues with the MAX6639ATE+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6639ATE+ Overview

Use the download button to access the MAX6639ATE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Other Signal Circuits
