MAX6639FAEE+T - Analog Devices

Description: Board Mount Temperature Sensors 2-Channel Temperature Monitor with Dual, Automatic, PWM Fan-Speed Controller

Download MAX6639FAEE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

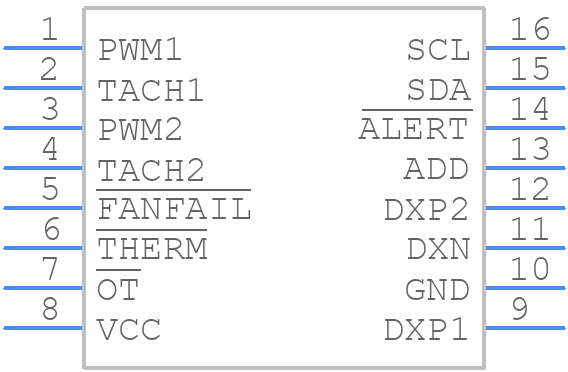

MAX6639FAEE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints

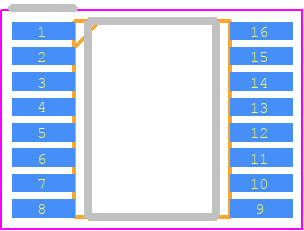

MAX6639FAEE+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+1
click to zoom
3D Models
MAX6639FAEE+T - Analog Devices - 3D model - Small Outline Packages - E16+1
click to zoom

MAX6639FAEE+T Details

  • Manufacturer Part Number:

    MAX6639FAEE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-05-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX6639FAEE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX6639FAEE+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The choice of external components for the MAX6639FAEE+T depends on the specific application requirements, such as the input voltage, output voltage, and output current. Analog Devices provides a component selection guide in the datasheet, and online tools such as the MAX6639FAEE+T Component Selector can also be used to help choose the correct components.
  • The MAX6639FAEE+T has an operating temperature range of -40°C to +125°C. At higher temperatures, the device's performance may be affected, such as a decrease in efficiency and an increase in quiescent current. It's recommended to follow the thermal management guidelines in the datasheet to ensure reliable operation.
  • Troubleshooting common issues with the MAX6639FAEE+T involves checking the PCB layout, component selection, and input/output connections. It's also recommended to use a oscilloscope to measure the output voltage and current, and to check the device's thermal performance using a thermal camera or thermometer.
  • Yes, the MAX6639FAEE+T is compatible with lead-free soldering processes. The recommended soldering conditions are a peak reflow temperature of 260°C, a soldering time of 10-30 seconds, and a soldering temperature profile that follows the JEDEC J-STD-020 standard.
