MAX6639FATE+ - Analog Devices

Description: Board Mount Temperature Sensors 2Ch Temperature Monitor

Download MAX6639FATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

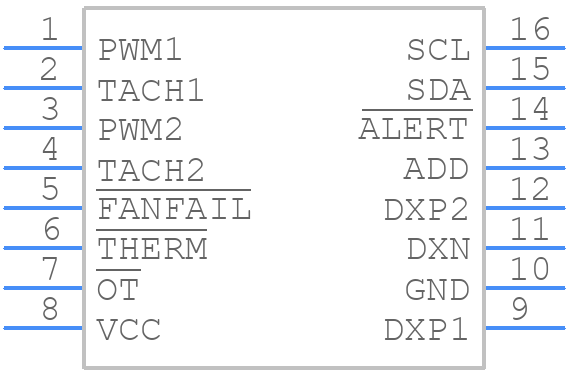

MAX6639FATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6639FATE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX6639FATE+
click to zoom
3D Models
MAX6639FATE+ - Analog Devices - 3D model - Small Outline Packages - MAX6639FATE+
click to zoom

MAX6639FATE+ Details

  • Manufacturer Part Number:

    MAX6639FATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    ROHS COMPLIANT, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-05-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.20SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX6639FATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX6639FATE+ involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the application note AN-1149 for more details.
  • To optimize the performance of the MAX6639FATE+, consider the input voltage range, output voltage requirements, and load current. Choose the correct output voltage setting resistors, and ensure the input capacitors are suitable for the input voltage range. Also, consider the thermal performance and ensure proper heat sinking.
  • The MAX6639FATE+ is a high-voltage, low-dropout linear regulator with a wide input voltage range (4.5V to 60V) and a high output current capability (500mA). It has a low quiescent current and a high power-supply rejection ratio (PSRR). Compared to other devices, the MAX6639FATE+ has a unique combination of high input voltage, low dropout voltage, and high output current capability.
  • To ensure the reliability and long-term stability of the MAX6639FATE+, follow proper design and layout guidelines, use high-quality components, and ensure the device is operated within its recommended specifications. Also, consider the thermal performance, and ensure proper heat sinking and cooling. Finally, perform thorough testing and validation of the design.
  • Potential failure modes of the MAX6639FATE+ include overheating, overvoltage, and overcurrent. To mitigate these, ensure proper heat sinking, use input and output capacitors with suitable voltage ratings, and add overcurrent protection circuits if necessary. Also, follow proper design and layout guidelines to minimize the risk of electrical overstress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX6639FATE+ Overview

Use the download button to access the MAX6639FATE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
