- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX6646MUA+
- Part Number MAX6646MUA+
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - U8+1
- Released Date Jun 18, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX6646MUA+ Details
-
Manufacturer Part Number:
MAX6646MUA+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
8-MINI_SO-N/A
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, MO-187CAA, MICRO, SOP-8
-
Pin Count:
8
-
Manufacturer Package Code:
8-MINI_SO-N/A
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2002-08-29
-
Manufacturer:
Analog Devices Inc
MAX6646MUA+ Frequently Asked Questions (FAQs)
-
The MAX6646MUA+ requires careful layout and placement to ensure accurate temperature measurements. It is recommended to place the device close to the thermal source, use a solid ground plane, and keep the analog and digital traces separate. Additionally, the device should be placed away from high-current carrying traces and heat sources.
-
The MAX6646MUA+ does not require calibration for temperature measurements. However, it is recommended to perform a one-time calibration for the thermistor or thermocouple sensor used with the device. This can be done by measuring the sensor's output voltage at multiple temperatures and creating a lookup table or using a calibration equation.
-
The maximum cable length for the thermistor or thermocouple sensor connected to the MAX6646MUA+ depends on the sensor type, cable material, and noise environment. As a general guideline, keep the cable length as short as possible (less than 1 meter) to minimize noise and ensure accurate measurements. For longer cable lengths, use shielded cables and consider adding noise filtering or amplification.
-
The MAX6646MUA+ is designed to work with thermistors and thermocouples, but it can be used with other types of temperature sensors with some modifications. For example, RTDs (resistance temperature detectors) can be used with the MAX6646MUA+, but an external amplifier or signal conditioning circuit may be required. Consult the datasheet and application notes for more information.
-
The MAX6646MUA+ has built-in error detection and fault handling mechanisms. For example, it can detect open-circuit or short-circuit faults in the thermistor or thermocouple sensor. The device also has a fault output pin that can be used to indicate errors or faults. Consult the datasheet and application notes for more information on error handling and fault detection.
Trust Checks
Community Provided
System Verified
Community Approved
MAX6646MUA+ Overview

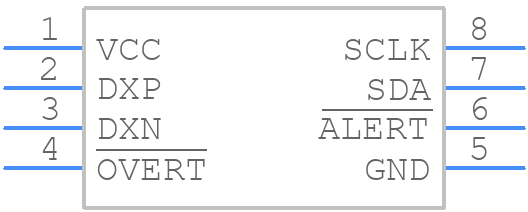

Use the download button to access the MAX6646MUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX66,
or try a keyword search, such as Other Signal Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
