MAX6653AEE+ - Analog Devices

Description: Maxim MAX6653AEE+ Temperature Sensor 16-Pin QSOP, -40 → +125 °C

Download MAX6653AEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

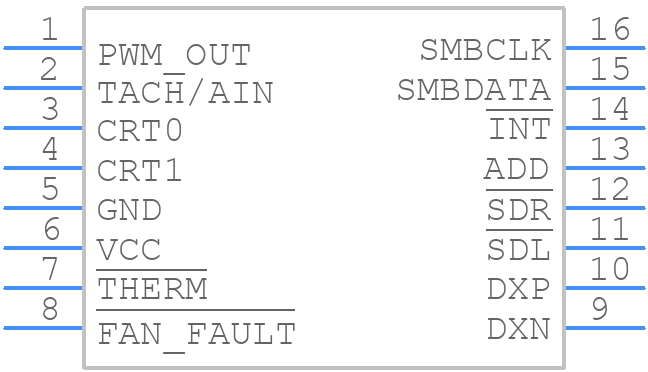

MAX6653AEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6653AEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E16+5_1-1
click to zoom
3D Models
MAX6653AEE+ - Analog Devices - 3D model - Small Outline Packages - E16+5_1-1
click to zoom

MAX6653AEE+ Details

  • Manufacturer Part Number:

    MAX6653AEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 PITCH, MO-137, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2003-05-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.46 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    1 mA

  • Output Voltage-Max:

    2.6 V

  • Output Voltage-Min:

    0.8 V

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX6653AEE+ Frequently Asked Questions (FAQs)

  • The MAX6653AEE+ requires careful layout and placement to ensure accurate temperature measurement. It is recommended to place the device close to the thermal source, use a solid ground plane, and keep the device away from high-current carrying traces. Additionally, the device should be placed on a multi-layer board with a thermal relief pattern to improve thermal conductivity.
  • The MAX6653AEE+ does not require calibration for temperature measurement. The device has an internal calibration that is performed during manufacturing, and the temperature measurement is accurate to within ±1°C. However, if the device is used in a specific application that requires higher accuracy, external calibration may be necessary.
  • The MAX6653AEE+ can measure temperatures from -40°C to +125°C. However, the device can operate from -55°C to +150°C, but the accuracy of the temperature measurement may be affected outside the recommended operating range.
  • The MAX6653AEE+ is a surface-mount device and can be used in high-vibration environments. However, it is recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, the device should be placed in a location that minimizes the effects of vibration on the temperature measurement.
  • The MAX6653AEE+ has a digital output that can be easily interfaced with a microcontroller. The device uses a 2-wire serial interface (I2C-compatible) to communicate with the microcontroller. The microcontroller can read the temperature data from the MAX6653AEE+ by sending a read command and receiving the data through the serial interface.
