MAX6660AEE+ - Analog Devices

Description: MAX6660AEE+, 11 bit Temperature Sensor ±1°C SMBus 3 → 5.5 V 16-Pin QSOP

Download MAX6660AEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

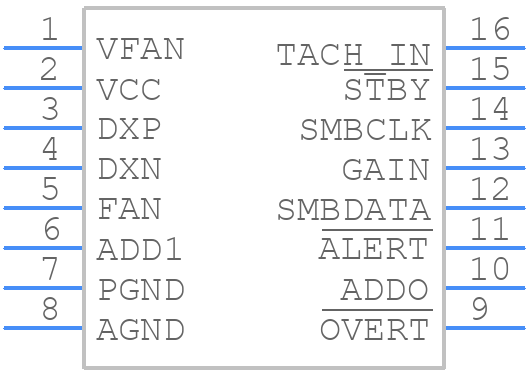

MAX6660AEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX6660AEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-16
click to zoom
3D Models
MAX6660AEE+ - Analog Devices - 3D model - Small Outline Packages - QSOP-16
click to zoom

MAX6660AEE+ Details

  • Manufacturer Part Number:

    MAX6660AEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2001-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX6660AEE+ Frequently Asked Questions (FAQs)

  • The MAX6660AEE+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
  • To optimize the performance of the MAX6660AEE+, it is recommended to follow the application guidelines provided in the datasheet, including selecting the appropriate input and output capacitors, setting the correct output voltage, and ensuring proper thermal management. Additionally, simulation tools such as SPICE models can be used to simulate the performance of the device in the specific application.
  • The MAX6660AEE+ can fail due to various reasons such as overvoltage, overcurrent, and overheating. To mitigate these failure modes, it is recommended to implement proper overvoltage protection, current limiting, and thermal management in the design. Additionally, following the recommended operating conditions and guidelines provided in the datasheet can help prevent failures.
  • To troubleshoot issues with the MAX6660AEE+, it is recommended to follow a systematic approach, including checking the input and output voltages, current consumption, and temperature. Additionally, using oscilloscopes and other diagnostic tools can help identify the root cause of the issue. The datasheet and application notes provided by Analog Devices Inc can also be consulted for troubleshooting guidance.
  • The MAX6660AEE+ requires proper thermal management to ensure reliable operation. It is recommended to follow the thermal management guidelines provided in the datasheet, including using a heat sink, ensuring good airflow, and keeping the device away from heat sources. Additionally, thermal simulation tools can be used to estimate the junction temperature and optimize the thermal design.
