MAX666CSA+ - Analog Devices

Description: Dual Mode™ 5V/Programmable Micropower Voltage Regulators

Download MAX666CSA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

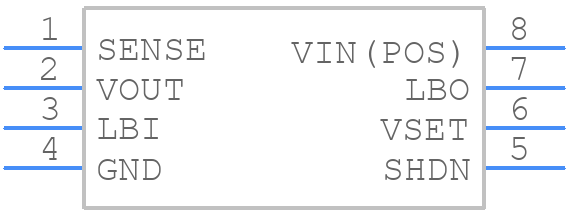

MAX666CSA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX666CSA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 (SOIC)
click to zoom
3D Models
MAX666CSA+ - Analog Devices - 3D model - Small Outline Packages - 8 (SOIC)
click to zoom

MAX666CSA+ Details

  • Manufacturer Part Number:

    MAX666CSA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1999-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Nom:

    0.9 V

  • Input Voltage Absolute-Max:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.2275%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current1-Max:

    0.04 A

  • Output Voltage1-Max:

    16 V

  • Output Voltage1-Min:

    1.3 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    5%

  • Width:

    3.9 mm

MAX666CSA+ Frequently Asked Questions (FAQs)

  • The MAX666CSA+ is a sensitive device and requires careful layout and placement to ensure optimal performance. It is recommended to place the device close to the temperature sensor, use a ground plane to reduce noise, and keep the input traces short and away from high-frequency signals.
  • The MAX666CSA+ does not require calibration, as it is a digital thermometer with an internal calibration. However, it is recommended to verify the accuracy of the device by comparing it to a known temperature reference point.
  • The maximum cable length for the MAX666CSA+ is not specified in the datasheet, but it is generally recommended to keep the cable length as short as possible to minimize noise and signal degradation. The accuracy of the temperature readings may be affected by the cable length, so it is recommended to verify the accuracy of the device with the specific cable length used.
  • The MAX666CSA+ is rated for operation up to 125°C, but it is not recommended for use in high-temperature applications above 100°C. The device may experience reduced accuracy and reliability at high temperatures, and it is recommended to use a thermocouple or other high-temperature sensor for applications above 100°C.
  • The MAX666CSA+ has a digital output that can be easily interfaced with a microcontroller or other digital system. The device uses a 2-wire serial interface, and the output data can be read using a simple serial protocol. The datasheet provides detailed information on the interface protocol and timing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX666CSA+ Overview

Use the download button to access the MAX666CSA+ schematic symbol, PCB footprint, and 3D model.
