MAX686EEE+ - Analog Devices

Description: DAC Controlled Boost Inverter LCD Supply

Download MAX686EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

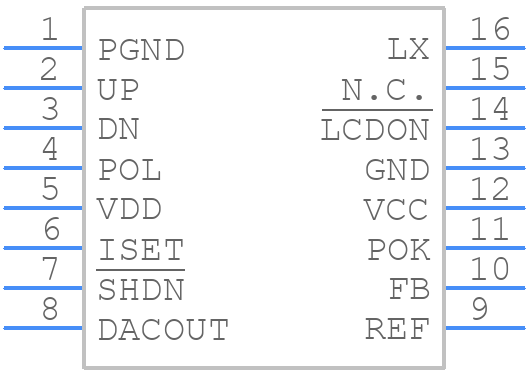

MAX686EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX686EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 16 QSOP-1
click to zoom
3D Models
MAX686EEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 16 QSOP-1
click to zoom

MAX686EEE+ Details

  • Manufacturer Part Number:

    MAX686EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1997-12-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    27.5 V

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.125 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX686EEE+ Frequently Asked Questions (FAQs)

  • The MAX686EEE+ requires careful layout and placement to ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • The choice of input and output capacitors depends on the specific application and operating conditions. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, and additional information can be found in the application notes.
  • The MAX686EEE+ is rated for operation from -40°C to +125°C, but the actual operating temperature range may be limited by the specific application and the components used. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • Troubleshooting issues with the MAX686EEE+ typically involves checking the input and output voltages, current consumption, and operating frequency. The datasheet provides a troubleshooting guide, and additional information can be found in the application notes and FAQs.
  • The MAX686EEE+ is a high-reliability device that meets the requirements for automotive and other high-reliability applications. However, it's essential to ensure that the device is used within the recommended operating conditions and that the application meets the required safety and reliability standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX686EEE+ Overview

Use the download button to access the MAX686EEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX68, or try a keyword search, such as Switching Regulator or Controllers
